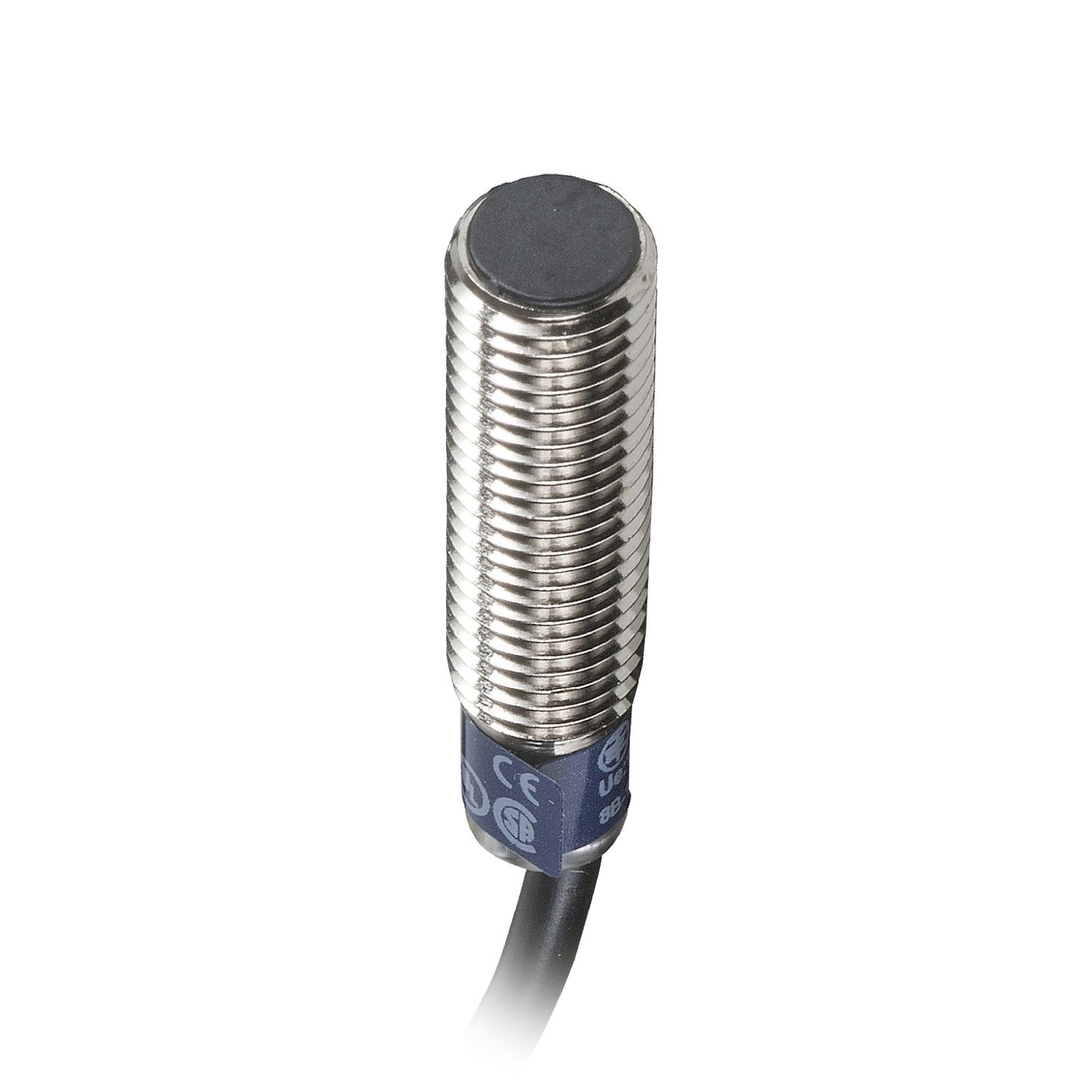

Square D XS108B3NAL2

Name: Square D XS108B3NAL2
Brand: Square D
SKU: CS4814094
Availability: OutOfStock

SKU: CS4814094MPN: XS108B3NAL2

inductive sensor XS1 M8, L33mm, stainless, Sn2.5mm, 12..24VDC, cable 2m

Product Details

Inductive proximity sensors XS, inductive sensor XS1 M8, L33mm, brass, Sn2.5mm, 12..24VDC, cable 2m

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-85 °C
Body Type	fixed
Cable Composition	3 x 0.11 mm²
Detection Face	frontal
Detector Flush Mounting Acceptance	flush mountable
Differential Travel	1…15% of Sr
Discrete Output Function	1 NO
Discrete Output Type	NPN
Enclosure Material	nickel plated brass
Front Material	PPS
Marking	CE
Marking 1	CE
Material	metal
Maximum Delay First Up	10 ms
Maximum Delay Recovery	0.2 ms
Maximum Delay Response	0.2 ms
Operating Zone	0-2 mm
Output Circuit Type	DC
Product Certifications	UL# #CSA
Range Of Product	Telemecanique Inductive proximity sensors XS
Sensor Design	cylindrical M8
Sensor Name	XS1
Sensor Type	inductive proximity sensor
Series Name	general purpose
Size	33 mm
Thread Type	M8 x 1
Type Of Output Signal	discrete
Wire Insulation Material	PvR
Wiring Technique	3-wire
