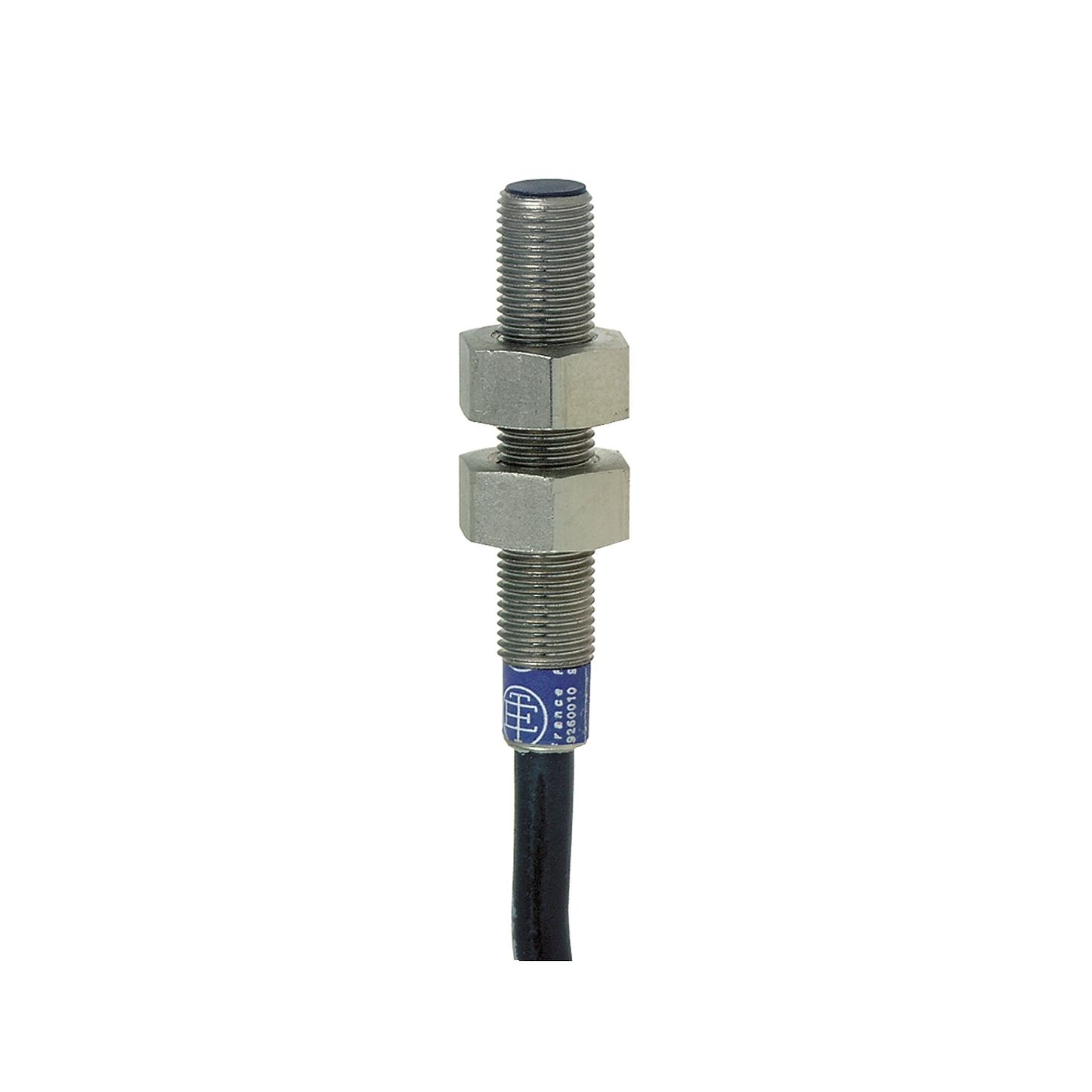

Square D XS1N05PA310L1

Inductive proximity sensors XS, inductive sensor XS1 M5, L28mm, brass, Sn1mm, 5..24VDC, cable 5m

Inductive sensor XS1 M5, L29mm, brass, Sn1mm, 5..24VDC, cable 5m

• Range of product : OsiSense XS
• Series name : General purpose
• Sensor type : Inductive proximity sensor
• Sensor name : XS1
• Sensor design : Cylindrical M5
• Size : 29 mm
• Body type : Fixed
• Detector flush mounting acceptance : Flush mountable
• Material : Metal
• Type of output signal : Discrete
• wiring technique : 3-wire
• Nominal sensing distance : 1 mm
• Discrete output function : 1 NO
• Output circuit type : DC
• Discrete output type : PNP
• Electrical connection : Cable
• Cable length : 5 m
• Rated supply voltage : 5...24 V DC
• IP degree of protection : IP67 conforming to IEC 60529
• Thread type : M5 x 0.5
• Detection face : Frontal
• Front material : PPS
• Enclosure material : Nickel plated brass
• Operating zone : 0…0.8 mm
• Cable composition : 3 x 0.11 Sqmm
• Wire insulation material : PvR
• Status LED : Output state: 1 LED (yellow)
• Supply voltage limits : 5…30 V DC
• Maximum delay first up : 5 ms
• Maximum delay response : 1 ms
• Maximum delay recovery : 1 ms
