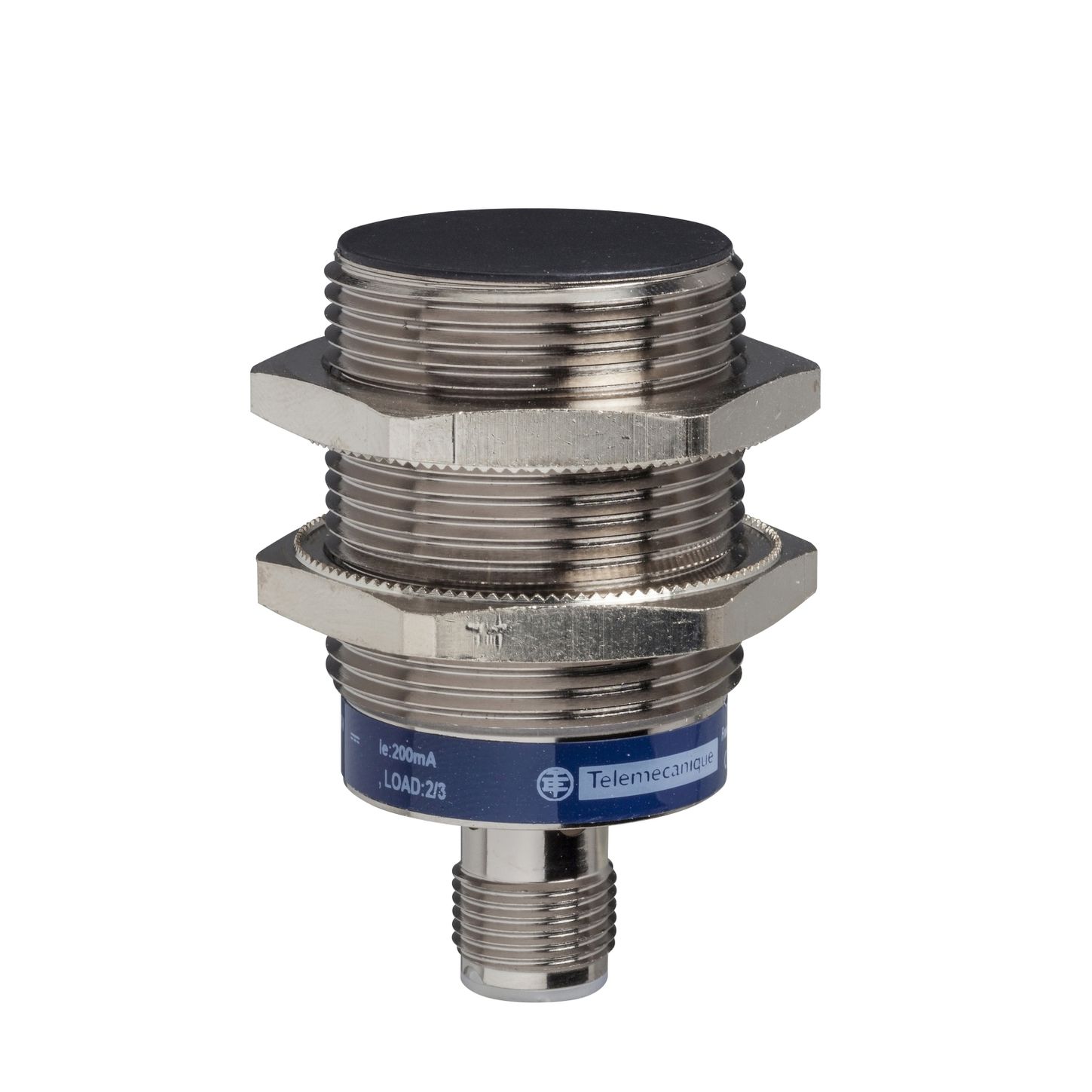

Square D XS130B3PBM12

Name: Square D XS130B3PBM12
Brand: Square D
SKU: CS4814096
Availability: OutOfStock

SKU: CS4814096MPN: XS130B3PBM12

inductive sensor XS1 M30, L55mm, brass, Sn15mm, 12..24VDC, M12

Product Details

Inductive sensor XS1 M30, L55mm, brass, Sn15mm, 12..24VDC, M12

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-85 °C
Body Type	fixed
Detection Face	frontal
Detector Flush Mounting Acceptance	flush mountable
Device Application	mobile equipment
Differential Travel	1…15% of Sr
Discrete Output Function	1 NC
Discrete Output Type	PNP
Enclosure Material	nickel plated brass
Front Material	PPS
Marking	CE
Marking 1	CE
Material	metal
Maximum Delay First Up	10 ms
Maximum Delay Recovery	1.4 ms
Maximum Delay Response	0.6 ms
Operating Zone	0-12 mm
Output Circuit Type	DC
Product Certifications	CSA# #UL# #E2
Range Of Product	Telemecanique Inductive proximity sensors XS
Sensor Design	cylindrical M30
Sensor Name	XS1
Sensor Type	inductive proximity sensor
Series Name	general purpose
Size	55 mm
Thread Type	M30 x 1.5
Type Of Output Signal	discrete
Wiring Technique	3-wire
