Square D

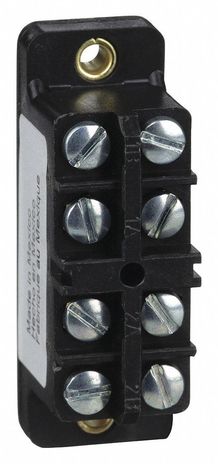

Square D 9007CO3

SKU: CS1681573MPN: 9007CO3UPC/EAN: 785901821007

Snap basic limit switch, 9007, 600 V 10amp c +options

Square D 9007CO3
Square D 9007CO3
Square D 9007CO3
Square D 9007CO3
$76.10
Unit
3 in stock
remove
add

Product Details

Nema Limit Switches

  • Contacts type and composition : 2(NC-NO), switch function: DPDT-DB
  • Contact form : Form ZZ
  • Contact operation : Snap action
  • Number of steps : 1
  • Terminals description ISO n°1 : (1-2)NC, (3-4)NO, (5-6)NC, (7-8)NO
  • Rated operational current : 0.1 A at 250 V DC
  • Conventional enclosed thermal current : 10 A

Attributes

Ithe Conventional Enclosed Thermal Current 0.417
Ambient Air Temperature For Operation -20-185 °F
Ambient Air Temperature For Operation 1 -20-185 °F
Ambient Air Temperature For Storage -20-185 °F
Body Material cast zinc
Body Type fixed
Contact Form Form ZZ
Contact Operation snap action
Contacts Material silver contacts
Device Short Name 9007AO/CO
Fixing Mode by the body
Material metal
Maximum Force For Tripping 0.75 lbf
Minimum Force For Tripping 0.44 lbf
Mounting Mode -
Movement Of Operating Head linear
Number Of Poles 2
Operator Material cast zinc
Operator Profile plunger head
Operator Profile 1 plunger head
Positive Opening without
Product Or Component Type snap basic limit switch
Range Of Product 9007
Series Name heavy duty
Switch Actuation on end
Terminals Description Iso N 1 (3-4)NO# #(1-2)NC# #(5-6)NC# #(7-8)NO

Specifications

SKUCS1681573
MPN9007CO3
UPC/EAN785901821007
