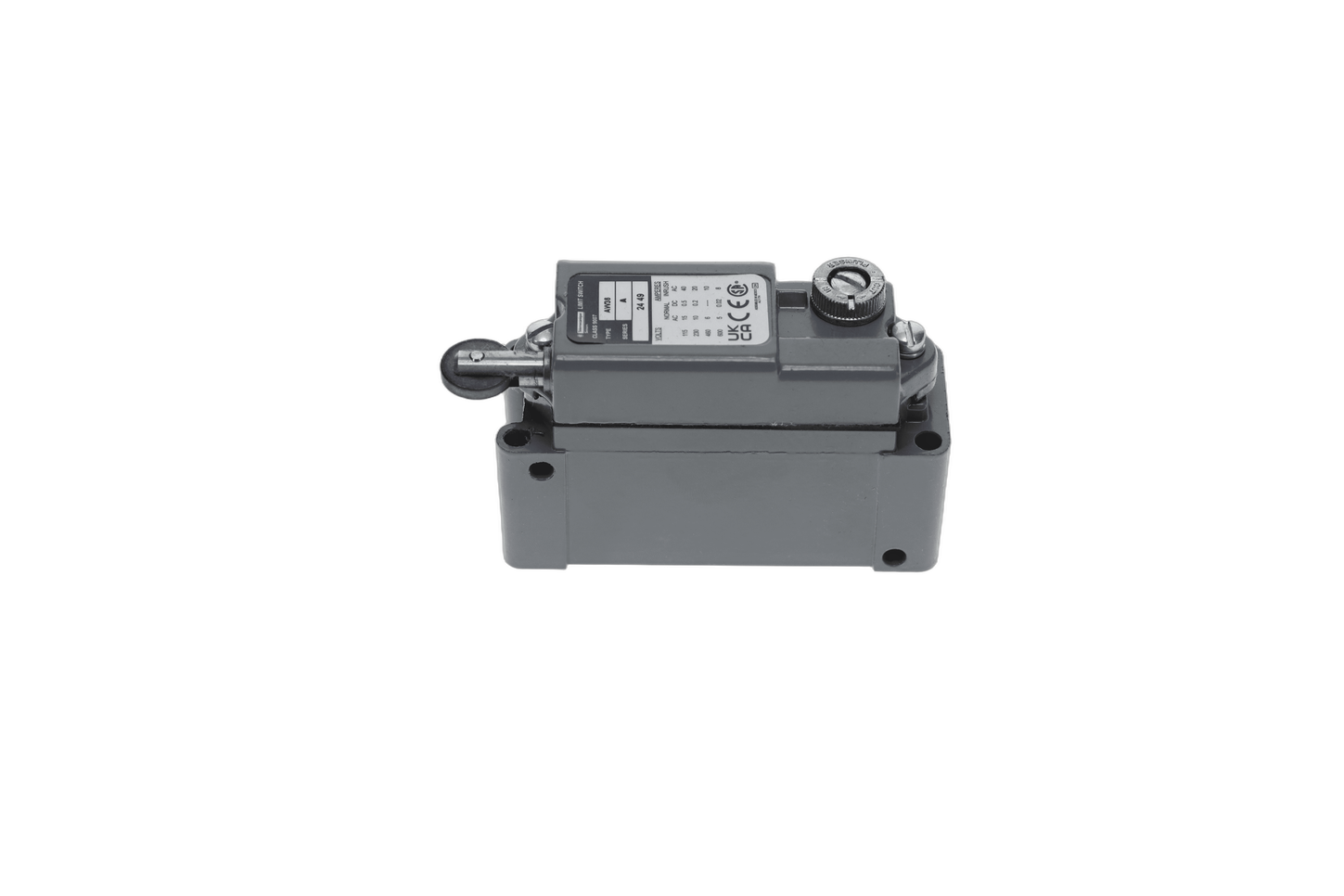

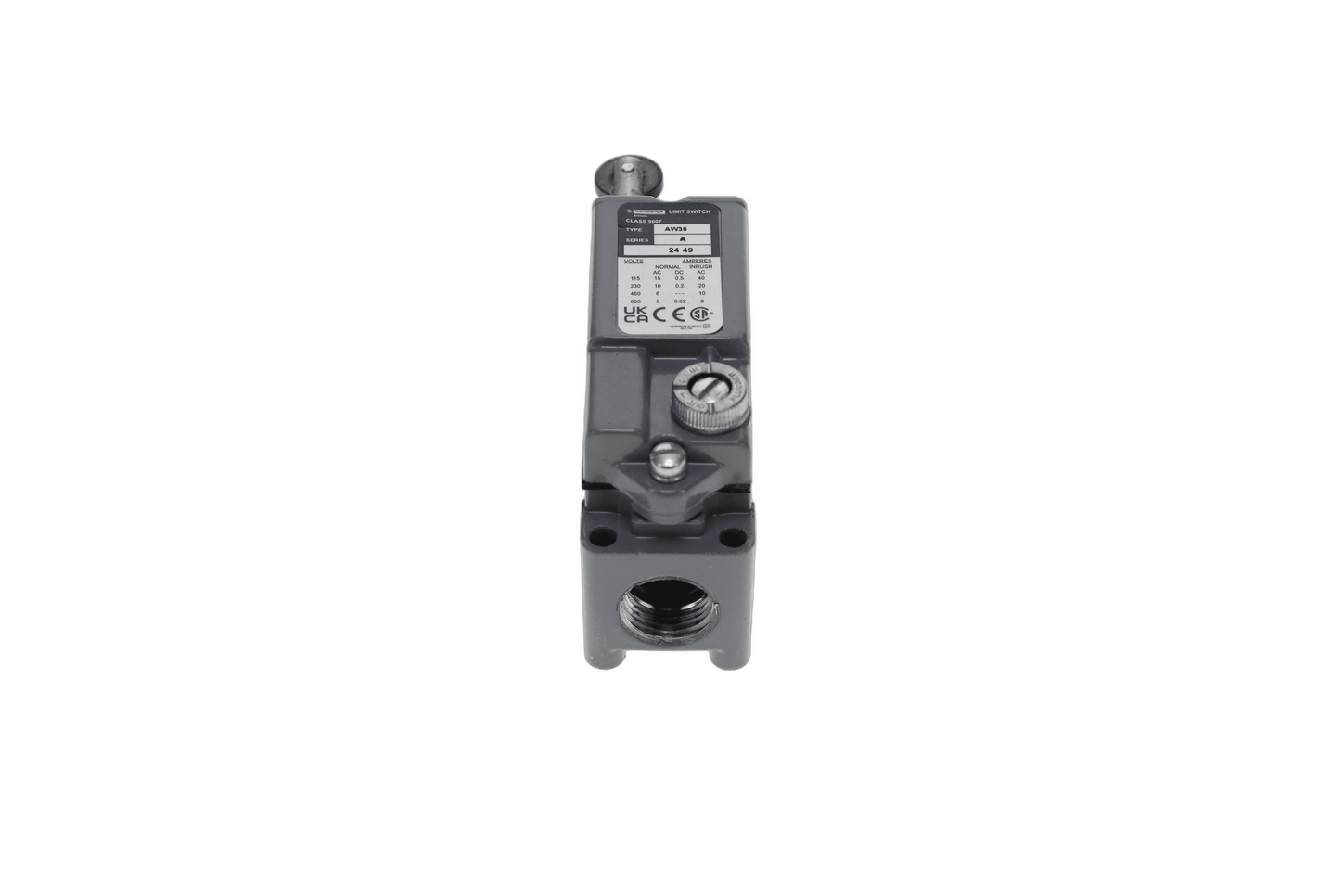

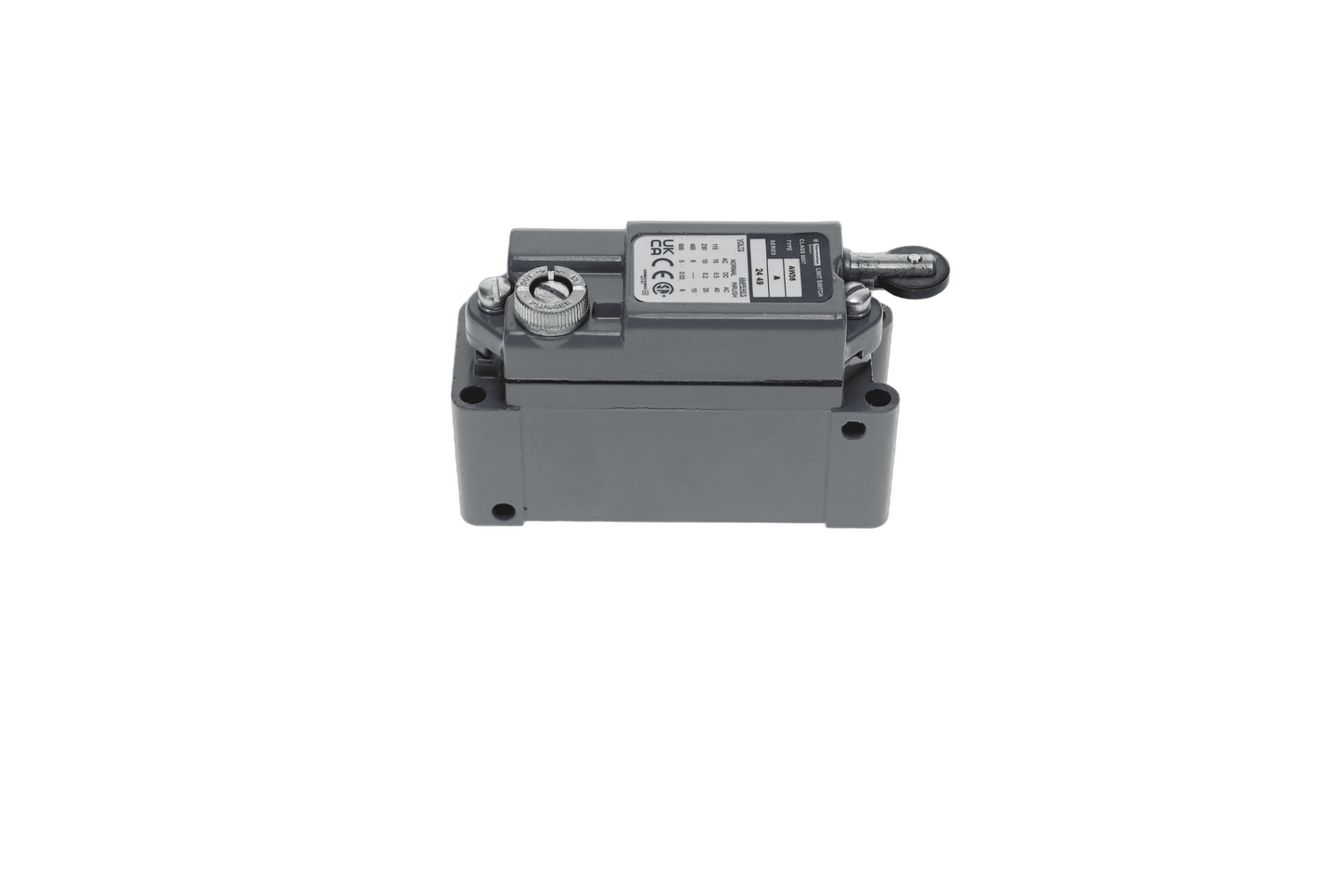

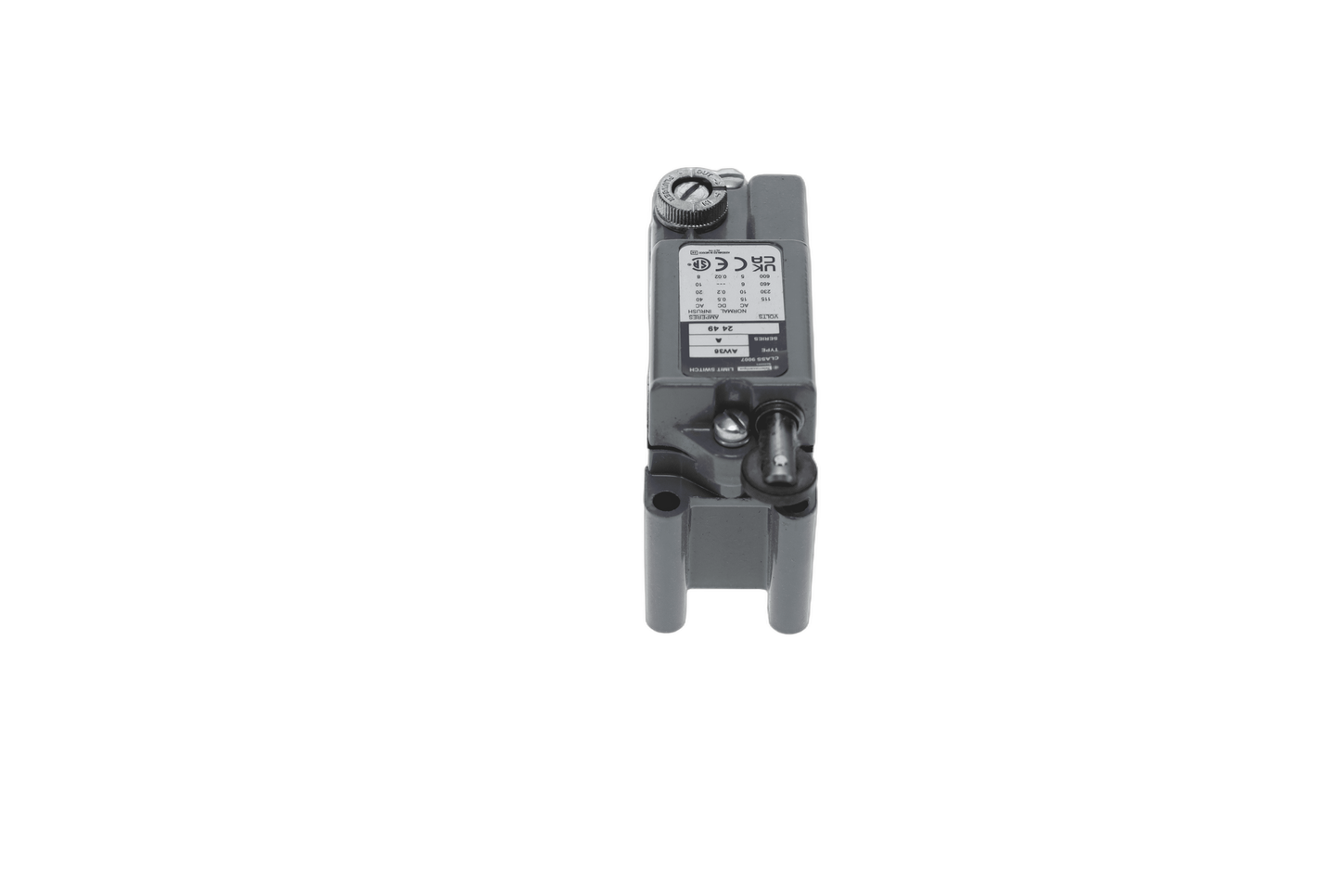

Square D 9007AW36

Name: Square D 9007AW36
Brand: Square D
SKU: CS667429
Availability: InStock

SKU: CS667429MPN: 9007AW36UPC/EAN: 785901804437

Limit switch, 9007, 600 VAC 15amp aw +options

1 in stock

Product Details

Heavy Duty Limit Switch Actuator Style - Limit Switch Plunger Roller Actuator Location - Limit Switch Top AC Contact Rating - Limit Switch 15A @ 600V DC Contact Rating - Limit Switch 15A @ 600V Contact Form- Switches 1NC/1NO Actuator Length - Limit Switch 0.5 in Body Height - Limit Switch 3.68 in Body Width - Limit Switch 2.53 in Body Depth - Limit Switch 1.44 in Boot Sealed Actuator - Limit Switch No Body Style - Limit Switch Standard NEMA Rating 1 12 13 2 4

Attributes

Ithe Conventional Enclosed Thermal Current	15 A
Ambient Air Temperature For Operation	0-185 °F
Ambient Air Temperature For Operation 1	0-185 °F
Ambient Air Temperature For Storage	0-185 °F
Body Material	cast zinc
Body Type	plug-in
Contact Form	Form Z
Contact Operation	snap action
Contacts Material	silver contacts
Device Short Name	9007AW
Fixing Mode	by the body
Material	metal
Minimum Force For Tripping	3 lbf
Mounting Mode	surface mounting
Movement Of Operating Head	linear
Number Of Poles	1
Operator Material	cast zinc
Operator Profile	plunger head
Operator Profile 1	plunger head
Positive Opening	without
Product Or Component Type	limit switch
Product Specific Application	precision
Protective Treatment	epoxy powder coat
Range Of Product	9007
Series Name	heavy duty
Switch Actuation	by 30° cam
Terminals Description Iso N 1	(3-4)NO# #(1-2)NC
