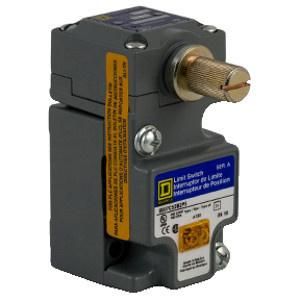

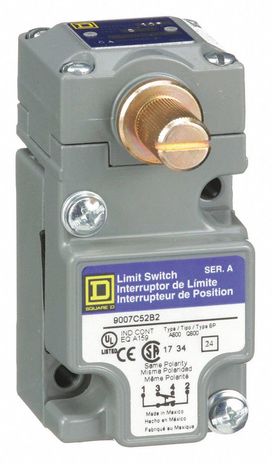

Square D 9007C52B2

Name: Square D 9007C52B2
Brand: Square D
SKU: CS834913
Availability: InStock

SKU: CS834913MPN: 9007C52B2UPC/EAN: 785901783367

Limit switch, 9007, 600 V 10amp c +options

89 in stock

Product Details

Limit Switch

Series Name: Heavy Duty* Body Type: Plug-in* Electrical Connection: Screw Clamp Terminals* Cable Entry: 1 entry for ½ in. - 14 NPT conforming to ANSI B1.20.1* Contacts Type and Composition: NC-NO* Contact Operation: Snap action* Degree of Protection: IP67 conforming to IEC 60529>/ul>

Ithe Conventional Enclosed Thermal Current	0.417
Ambient Air Temperature For Storage	-20-185 °F
Body Material	zinc
Body Type	plug-in
Contact Form	Form Z
Contact Operation	snap action
Contacts Material	silver contacts
Contacts Type And Composition	NC-NO
Device Short Name	9007C
Electrical Durability	1000000 cycles
Environmental Characteristic	standard environment
Fixing Mode	by the body
Function Available	-
Head Material	zinc
Head Type	rotary head
Material	metal
Maximum Displacement Angle	90 °
Mechanical Durability	10000000 cycles
Movement Of Operating Head	rotary
Number Of Poles	1
Positive Opening	without
Product Or Component Type	limit switch
Product Specific Application	compact box
Protective Treatment	epoxy powder coat
Range Of Product	9007
Sale Per Indivisible Quantity	1.0000
Series Name	heavy duty
Switch Actuation	from left and right# #CW and CCW
Switch Function	SPDT-DB
Terminals Description Iso N 1	(1-2)NC# #(3-4)NO
