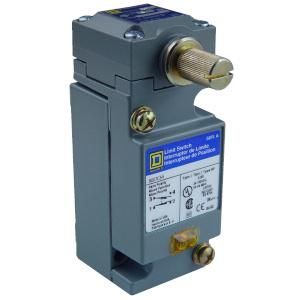

Square D 9007C54A2

Name: Square D 9007C54A2
Brand: Square D
SKU: CS51929
Availability: InStock

SKU: CS51929MPN: 9007C54A2UPC/EAN: 785901500728

Limit switch, 9007, 600 V 10amp c +options

9 in stock

Product Details

Nema Limit Switch,Heavy Duty, 600V, 10AMP C +OPTIONS,1P,NC-NO

Ithe Conventional Enclosed Thermal Current	0.417
Ambient Air Temperature For Storage	-20-185 °F
Body Material	zinc
Body Type	plug-in
Contact Form	Form Z
Contact Operation	snap action
Contacts Material	silver contacts
Contacts Type And Composition	NC-NO
Device Short Name	9007C
Electrical Durability	1000000 cycles
Environmental Characteristic	standard environment
Fixing Mode	by the body
Function Available	-
Head Material	zinc
Head Type	rotary head
Material	metal
Maximum Displacement Angle	90 °
Mechanical Durability	10000000 cycles
Movement Of Operating Head	rotary
Number Of Poles	1
Positive Opening	without
Product Or Component Type	limit switch
Product Specific Application	standard box
Protective Treatment	epoxy powder coat
Range Of Product	9007
Sale Per Indivisible Quantity	1.0000
Series Name	heavy duty
Switch Actuation	CW and CCW# #from left and right
Switch Function	SPDT-DB
Terminals Description Iso N 1	(3-4)NO# #(1-2)NC
