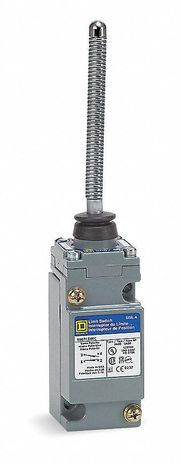

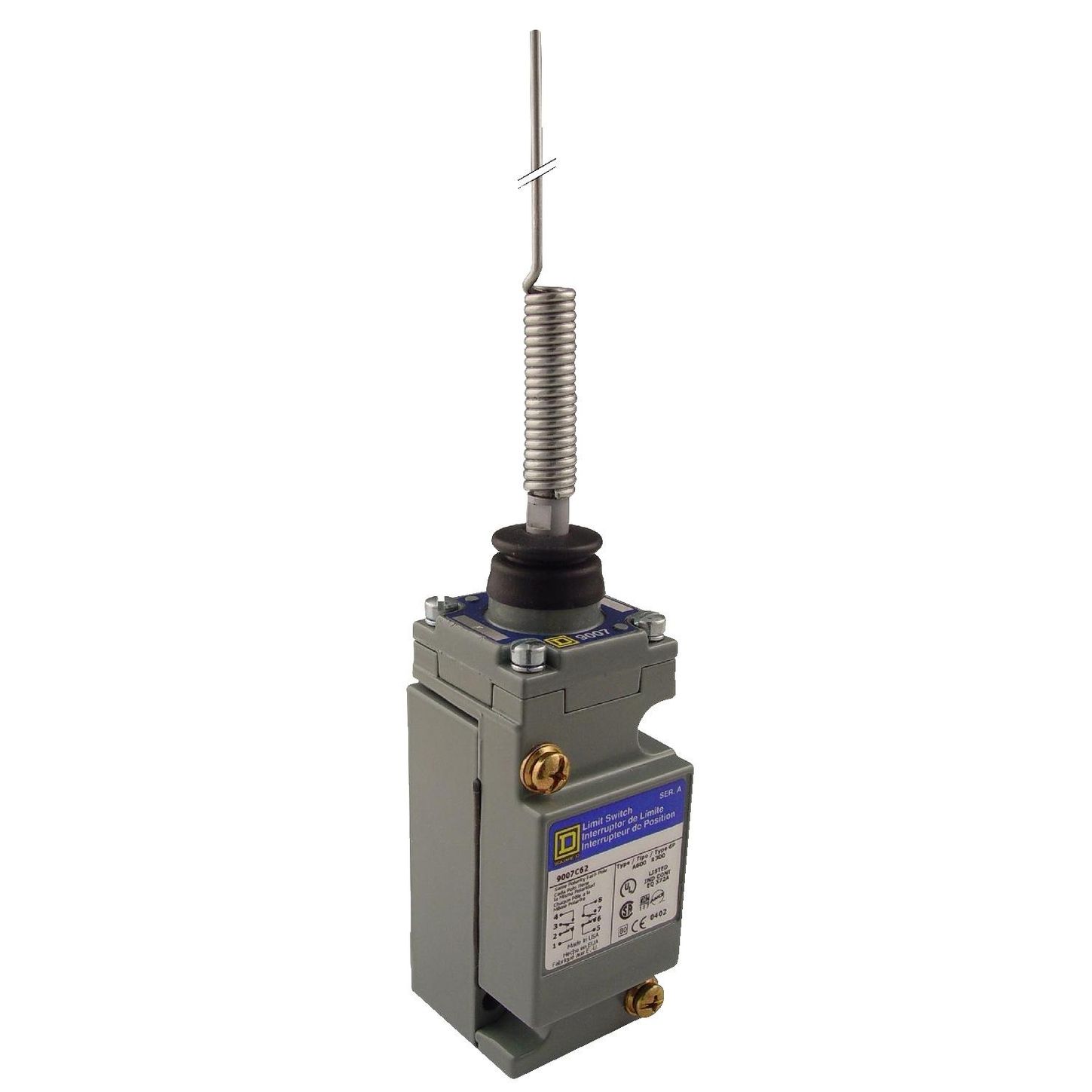

Square D 9007C62KC

Limit switch, 9007, 600 V 10amp c +options

LIMIT SWITCH 600V 10AMP C +OPTIONS

• Range of product : 9007
• Series name : Heavy duty
• Product or component type : Limit switch
• Product specific application : Standard box
• Device short name : 9007C
• Body type : Plug-in
• Head type : Multi-directional head
• Material : Metal
• Fixing mode : By the body
• Movement of operating head : Multi-directional
• Type of operator : Steel spring return wobble stick (coil spring extension)
• Switch actuation : By any moving part
• Type of approach : Multi-directional approach, multi-directional approach
• Electrical connection : Screw-clamp terminals (AWG 22...AWG 12), 1…2
• Cable entry : 1 entry for ½” - 14 NPT conforming to ANSI B1.20.1
• Number of poles : 2
• Contacts type and composition : 2(NC-NO)
• Contact operation : Snap action
• Positive opening : Without
• Sale per indivisible quantity : 1
