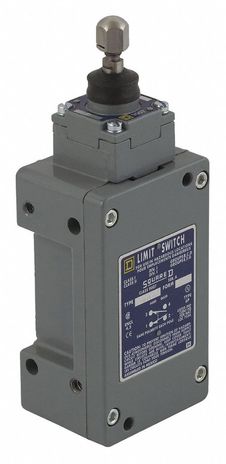

Square D 9007CR61ED

Name: Square D 9007CR61ED
Brand: Square D
SKU: CS4810086
Availability: OutOfStock

SKU: CS4810086MPN: 9007CR61EDUPC/EAN: 785901348337

Limit switch, 9007, 600 V 10amp c +options

Product Details

LIMIT SWITCH 600V 10AMP C +OPTIONS

Ithe Conventional Enclosed Thermal Current	0.417
Ambient Air Temperature For Storage	-20-185 °F
Body Material	aluminium
Body Type	fixed
Contact Form	Form ZZ
Contact Operation	snap action
Contacts Material	silver contacts
Contacts Type And Composition	2(NC-NO)
Device Short Name	9007CR
Electrical Durability	1000000 cycles
Environmental Characteristic	standard environment
Fixing Mode	by the body
Function Available	-
Head Material	zinc
Head Type	plunger head
Level Or Class	Class I Division 1 Groups B/C/D# #Class II Division 1 Groups E/F/G
Material	metal
Mechanical Durability	10000000 cycles
Minimum Force For Tripping	3 lbf
Movement Of Operating Head	linear
Number Of Poles	2
Positive Opening	without
Product Or Component Type	limit switch
Product Specific Application	hazardous location box
Protective Treatment	epoxy powder coat
Range Of Product	9007
Sale Per Indivisible Quantity	1.0000
Series Name	heavy duty
Switch Actuation	on end
Switch Function	DPDT-DB
Terminals Description Iso N 1	(1-2)NC# #(7-8)NO# #(3-4)NO# #(5-6)NC
