Square D 9007C62D

Name: Square D 9007C62D
Brand: Square D
SKU: CS253036
Availability: OutOfStock

SKU: CS253036MPN: 9007C62DUPC/EAN: 785901500667

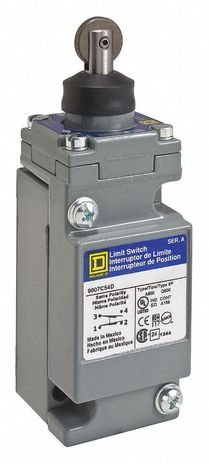

Limit switch, 9007, 600 V 10amp c +options

Product Details

Limit Switch

Series Name: Heavy Duty* Body Type: Plug-in* Electrical Connection: Screw Clamp Terminals* Cable Entry: 1 entry for ½ in. - 14 NPT conforming to ANSI B1.20.1* Degree of Protection: IP67 conforming to IEC 60529>/ul>

Ithe Conventional Enclosed Thermal Current	0.417
Ambient Air Temperature For Storage	-20-185 °F
Body Material	zinc
Body Type	plug-in
Contact Form	Form ZZ
Contact Operation	snap action
Contacts Material	silver contacts
Contacts Type And Composition	2(NC-NO)
Device Short Name	9007C
Electrical Durability	1000000 cycles
Environmental Characteristic	standard environment
Fixing Mode	by the body
Function Available	-
Head Material	zinc
Head Type	plunger head
Material	metal
Mechanical Durability	10000000 cycles
Movement Of Operating Head	linear
Number Of Poles	2
Positive Opening	without
Product Or Component Type	limit switch
Product Specific Application	standard box
Protective Treatment	epoxy powder coat
Range Of Product	9007
Sale Per Indivisible Quantity	1.0000
Series Name	heavy duty
Switch Actuation	by 30° cam
Switch Function	DPDT-DB
Terminals Description Iso N 1	(5-6)NC# #(1-2)NC# #(3-4)NO# #(7-8)NO
