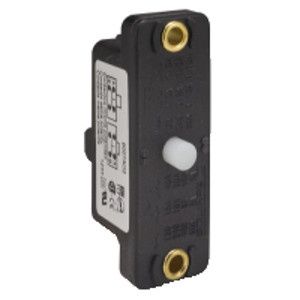

Square D 9007AO1

Name: Square D 9007AO1
Brand: Square D
SKU: CS1681613
Availability: OutOfStock

SKU: CS1681613MPN: 9007AO1UPC/EAN: 785901759034

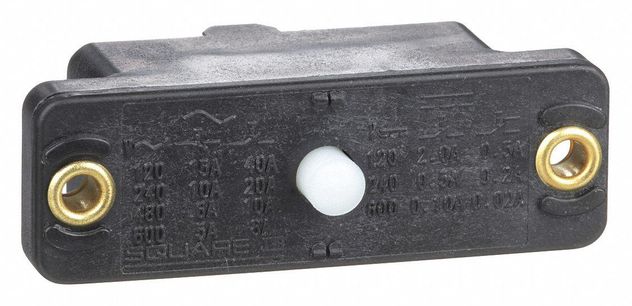

Snap basic limit switch, 9007, 600 VAC 15amp ao +options

Product Details

Limit Switch

Series Name: Heavy Duty* Body Type: Fixed* Electrical Connection: 1-2 cables for 6 binder head screw terminals (AWG22-AWG14)* NEMA Degree of Protection: NEMA 1 conforming to Nema Type 250* IP Degree of Protection: IP20 conforming to IEC 60529>/ul>

Ithe Conventional Enclosed Thermal Current	15 A
Ambient Air Temperature For Operation	-20-185 °F
Ambient Air Temperature For Operation 1	-20-185 °F
Ambient Air Temperature For Storage	-20-185 °F
Body Material	cast zinc
Body Type	fixed
Contact Form	Form Z
Contact Operation	snap action
Contacts Material	silver contacts
Device Short Name	9007AO/CO
Fixing Mode	by the body
Material	metal
Maximum Force For Tripping	0.69 lbf
Minimum Force For Tripping	0.44 lbf
Mounting Mode	-
Movement Of Operating Head	linear
Number Of Poles	1
Operator Material	cast zinc
Operator Profile	plunger head
Operator Profile 1	plunger head
Positive Opening	without
Product Or Component Type	snap basic limit switch
Range Of Product	9007
Series Name	heavy duty
Switch Actuation	on end
Terminals Description Iso N 1	(1-2)NC
