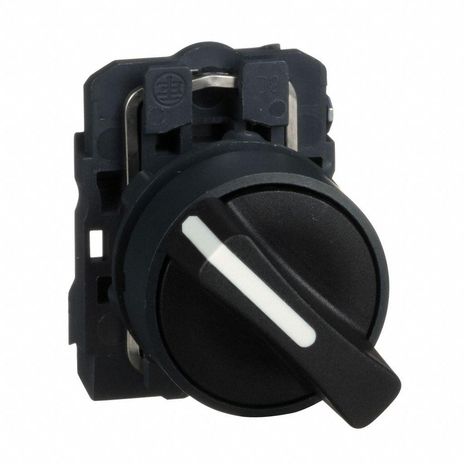

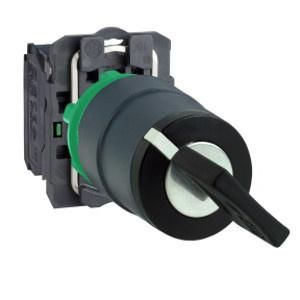

Square D XB5AD21

Name: Square D XB5AD21
Brand: Square D
SKU: CS1679764
Availability: OutOfStock

SKU: CS1679764MPN: XB5AD21

Selector switch, Harmony XB5, plastic black, 22mm, 2 positions, stay put, 1NO

Product Details

Harmony Complete Control Selector Switch

Bezel Material: Plastic* Mounting Diameter: 22mm* Shape of Signaling Head: Round* Type of Operator: Stay put* Operator Profile: Black standard handle* Operator Position Information: 2 positions 90 deg.* Contacts Type and Composition: 1 NO* Contact Operation: Slow-break* Connections-Terminals: Screw clamp terminals* Rated Insulation Volatage: 600 V (degree of pollution: 3) conforming to EN 60947-1* 2 AMP* Degree of Protection: NEMA 4X, 13

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	dark grey plastic
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	1 NO
Contacts Usage	standard contacts
Device Presentation	complete product
Device Short Name	XB5
Head Type	standard
Mechanical Durability	1000000 cycles
Mounting Diameter	22 mm
Operator Position Information	2 positions 90°
Product Certifications	UL# #DNV# #GL# #BV# #CSA# #LROS (Lloyds register of shipping)
Product Or Component Type	selector switch
Protective Treatment	TH
Range Of Product	Harmony XB5
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Terminals Description Iso N 1	(13-14)NO
