Square D XB5AG03

Name: Square D XB5AG03
Brand: Square D
SKU: CS4813983
Price: 149.39 USD
Availability: OutOfStock

SKU: CS4813983MPN: XB5AG03

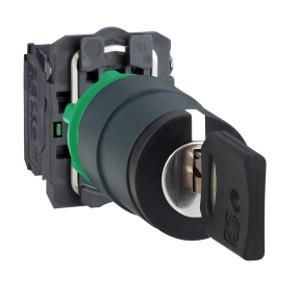

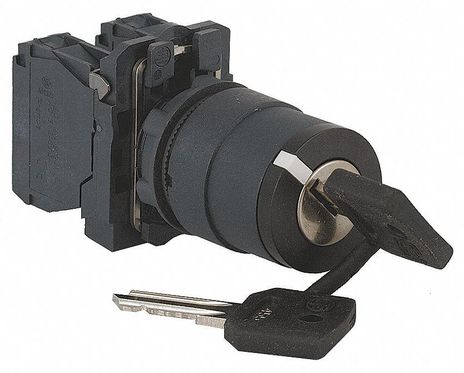

Key switch selector, Harmony XB5, plastic, black, 22mm, key 455, 3 positions,stay put, 2 NO

$149.39

Unit

Available on backorder

Quantity

remove

add

Product Details

Harmony Complete Control Selector Switch

Bezel Material: Plastic* Mounting Diameter: 22mm* Shape of Signaling Head: Round* Type of Operator: Stay put* Operator Profile: Black key switch* Operator Position Information: 3 positions +/- 45 deg.* Type of Keylock: Ronis 455* Contacts Type and Composition: 2 NO* Contact Operation: Slow-break* Connections-Terminals: Screw clamp terminals* Rated Insulation Volatage: 600 V (degree of pollution: 3) conforming to EN 60947-1* 2 AMP* Degree of Protection: NEMA 4X, 13

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	dark grey plastic
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	2 NO
Contacts Usage	standard contacts
Device Presentation	complete product
Device Short Name	XB5
Head Type	standard
Key Withdrawal Position	in any position
Mechanical Durability	1000000 cycles
Mounting Diameter	22 mm
Operator Position Information	3 positions ± 45°
Product Certifications	CSA# #DNV# #LROS (Lloyds register of shipping)# #BV# #GL# #UL
Product Or Component Type	selector switch
Protective Treatment	TH
Range Of Product	Harmony XB5
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Terminals Description Iso N 1	(13-14)NO
Type Of Keylock	Ronis 455
