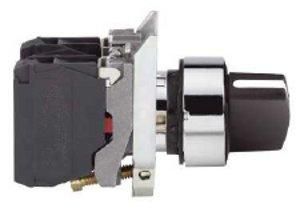

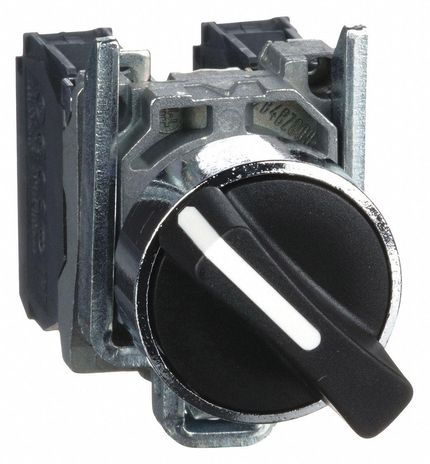

Square D XB4BD25

Name: Square D XB4BD25
Brand: Square D
SKU: CS314212
Price: 85.69 USD
Availability: InStock

SKU: CS314212MPN: XB4BD25

Selector switch, Harmony XB4, metal, black, 22mm, 2 positions, stay put, 1NO+1NC

$85.69

Unit

16 in stock

Quantity

remove

add

Product Details

Black complete selector switch 22mm 2-position stay put 1NO+1NC

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	1 NO + 1 NC
Contacts Usage	standard contacts
Device Presentation	complete product
Device Short Name	XB4
Fixing Collar Material	zamak
Head Type	standard
Mechanical Durability	1000000 cycles
Mounting Diameter	22 mm
Operator Position Information	2 positions 90°
Product Certifications	DNV# #LROS (Lloyds register of shipping)# #CSA# #GL# #UL# #BV
Product Or Component Type	selector switch
Protective Treatment	TH
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Standards	EN/IEC 60947-5-5# #JIS C8201-5-1# #UL 508# #EN/IEC 60947-5-4# #EN/IEC 60947-1# #CSA C22.2 No 14# #EN/IEC 60947-5-1# #JIS C8201-1
Terminals Description Iso N 1	(13-14)NO# #(21-22)NC
