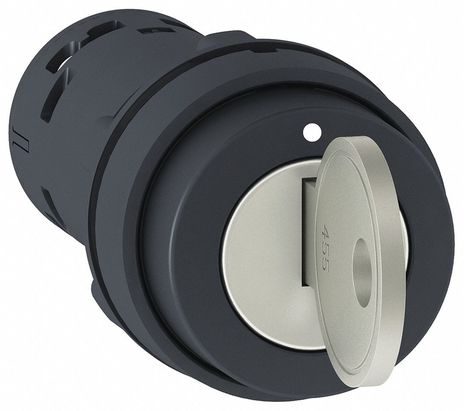

Square D XB7NG21

Name: Square D XB7NG21
Brand: Square D
SKU: CS4814006
Availability: OutOfStock

SKU: CS4814006MPN: XB7NG21

Monolithic key switch selector, Harmony XB7, plastic, black, 22mm, key 455, 2 positions, stay put, 1NO

Product Details

Monolithic key switch selector, plastic, black, Dia 22, key n deg 455, 2 positions, stay put, 1 NO

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Contact Operation	slow-break
Contacts Type And Composition	1 NO
Device Short Name	XB7
Key Withdrawal Position	left-hand
Mechanical Durability	300000 cycles
Mounting Diameter	22 mm
Operator Position Information	2 positions 90°
Product Or Component Type	selector switch
Protective Treatment	TH
Range Of Product	Harmony XB7
Sale Per Indivisible Quantity	10.0000
Shape Of Signaling Unit Head	round
Standards	EN/IEC 60947-1# #EN/IEC 60947-5-1# #UL 508# #JIS C8201-5-1# #CSA C22.2 No 14# #JIS C8201-1
Terminals Description Iso N 1	(13-14)NO
Type Of Keylock	Ronis 455
