Square D XS618B1PAL10

Name: Square D XS618B1PAL10
Brand: Square D
SKU: CS4814119
Availability: OutOfStock

SKU: CS4814119MPN: XS618B1PAL10

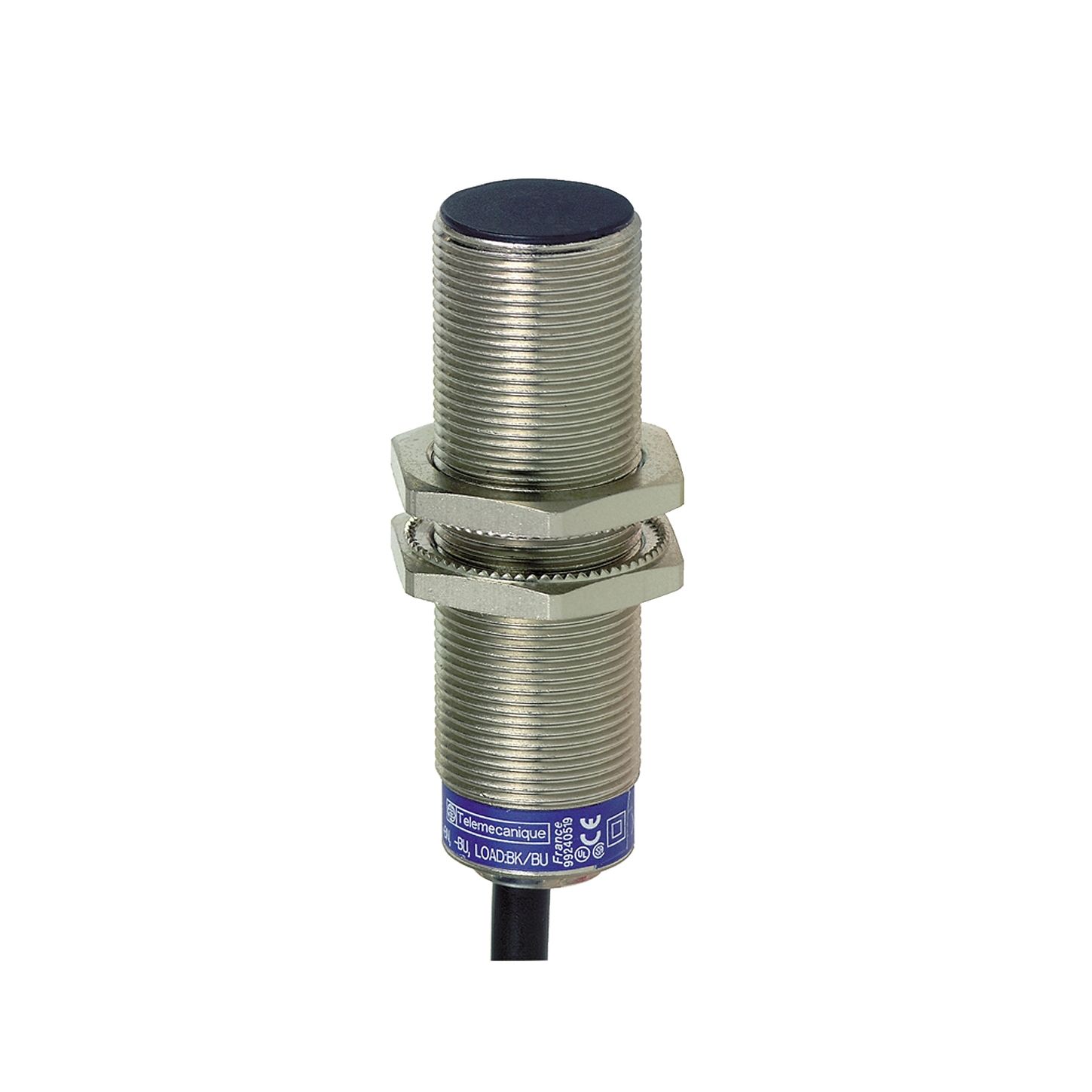

Inductive proximity sensors XS, inductive sensor XS6 M18, L62mm, brass, Sn8mm, 12...48 VDC, cable 10 m

Product Details

Inductive sensor XS6 M18, L62mm, brass, Sn8mm, 12..48VDC, Cable 10m

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-85 °C
Body Type	fixed
Cable Composition	3 x 0.34 mm²
Detection Face	frontal
Detector Flush Mounting Acceptance	flush mountable
Device Application	mobile equipment
Differential Travel	1…15% of Sr
Discrete Output Function	1 NO
Discrete Output Type	PNP
Enclosure Material	nickel plated brass
Front Material	PPS
Marking	CE
Marking 1	CE
Material	metal
Maximum Delay First Up	10 ms
Maximum Delay Recovery	0.7 ms
Maximum Delay Response	0.3 ms
Operating Zone	0-6.4 mm
Output Circuit Type	DC
Product Certifications	UL# #E2# #CSA
Range Of Product	Telemecanique Inductive proximity sensors XS
Sensing Range	> 4…8 mm
Sensor Design	cylindrical M18
Sensor Name	XS6
Sensor Type	inductive proximity sensor
Series Name	general purpose
Size	62 mm
Thread Type	M18 x 1
Type Of Output Signal	discrete
Wire Insulation Material	PvR
Wiring Technique	3-wire
