Square D XS618B1PAM12

Name: Square D XS618B1PAM12
Brand: Square D
SKU: CS1674096
Availability: InStock

SKU: CS1674096MPN: XS618B1PAM12UPC/EAN: 3389110146387

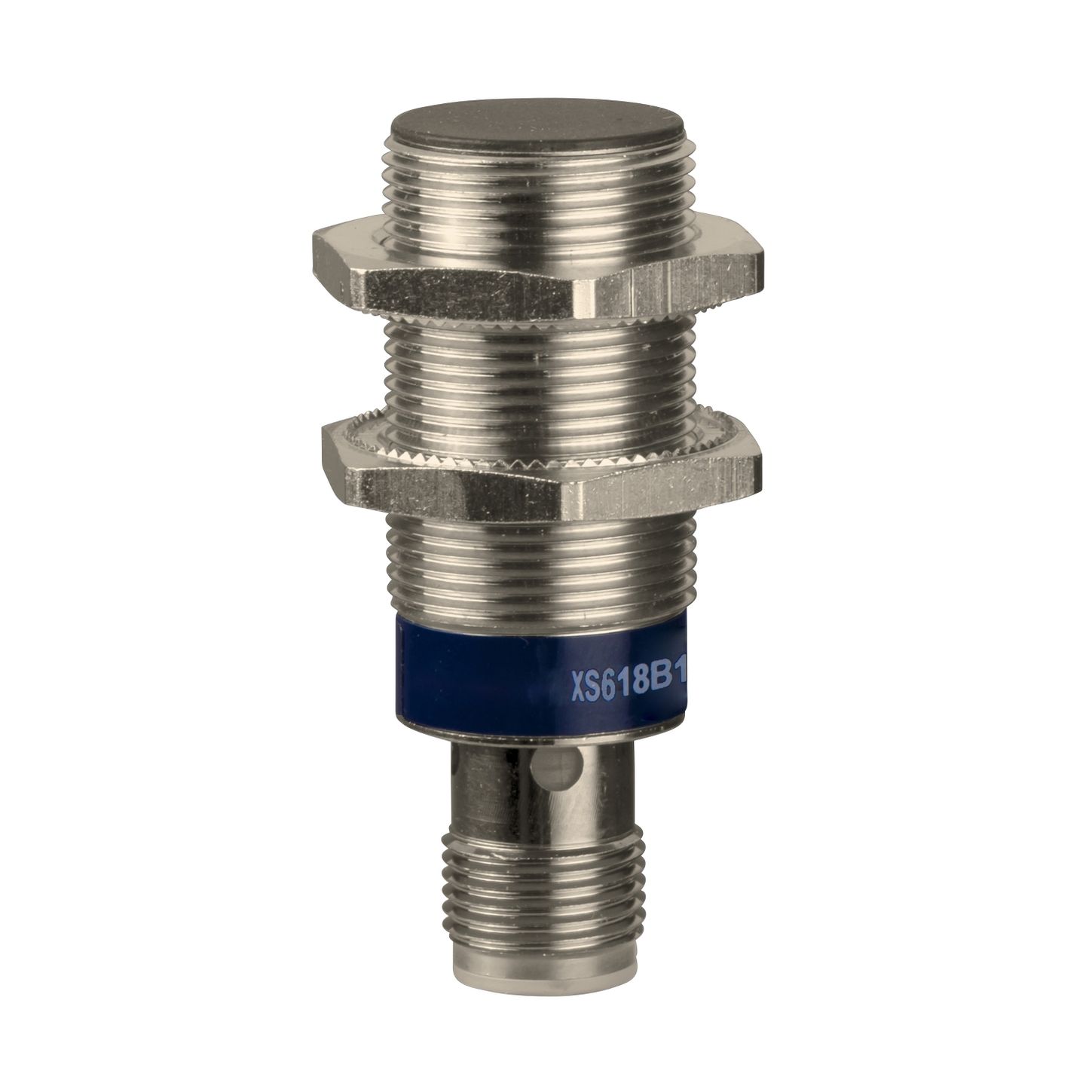

Inductive proximity sensors XS, inductive sensor XS6 M18, L74mm, brass, Sn8mm, 12...48 VDC, M12

11 in stock

Product Details

Inductive sensor XS6 M18, L74mm, brass, Sn8mm, 12..48VDC, M12

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-85 °C
Body Type	fixed
Detection Face	frontal
Detector Flush Mounting Acceptance	flush mountable
Device Application	mobile equipment
Differential Travel	1…15% of Sr
Discrete Output Function	1 NO
Discrete Output Type	PNP
Enclosure Material	nickel plated brass
Front Material	PPS
Marking	CE
Marking 1	CE
Material	metal
Maximum Delay First Up	10 ms
Maximum Delay Recovery	0.7 ms
Maximum Delay Response	0.3 ms
Operating Zone	0-6.4 mm
Output Circuit Type	DC
Product Certifications	CSA# #E2# #UL
Range Of Product	Telemecanique Inductive proximity sensors XS
Sensing Range	> 4…8 mm
Sensor Design	cylindrical M18
Sensor Name	XS6
Sensor Type	inductive proximity sensor
Series Name	general purpose
Size	74 mm
Thread Type	M18 x 1
Type Of Output Signal	discrete
Wiring Technique	3-wire
