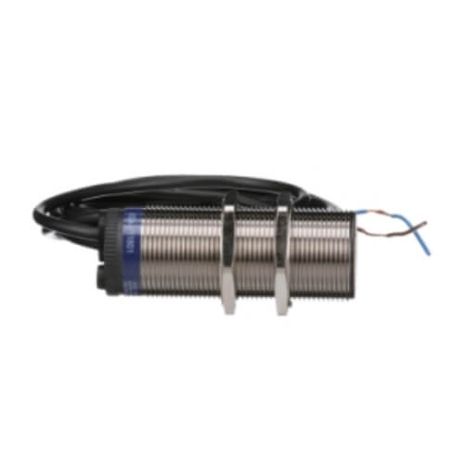

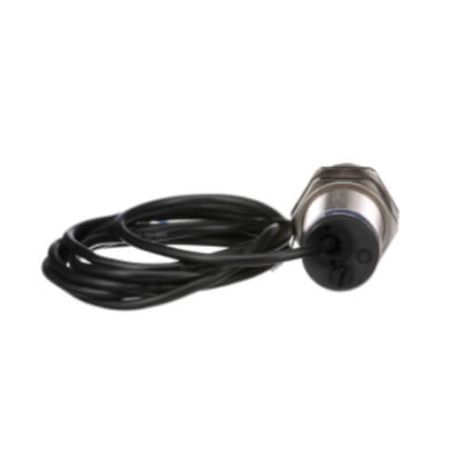

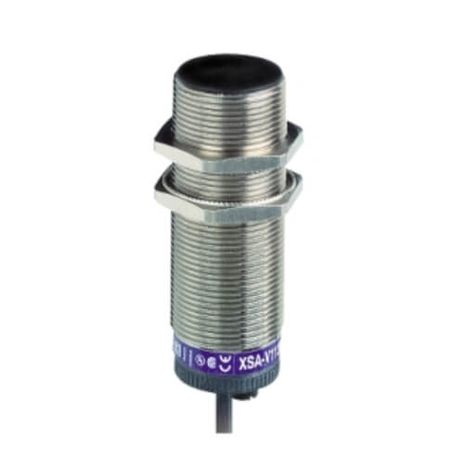

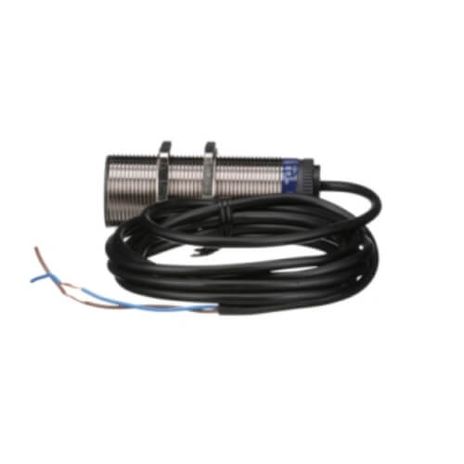

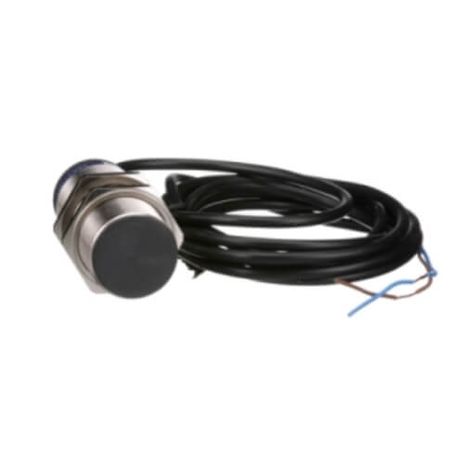

Square D XSAV11801

Name: Square D XSAV11801
Brand: Square D
SKU: CS803215
Availability: InStock

SKU: CS803215MPN: XSAV11801UPC/EAN: 3389110916034

Inductive proximity sensors XS, Rotation monitoring, M30, Sn10mm, 6...150c/mn, 24...240VAC/DC, cable 2 m

10 in stock

Product Details

InductiveProximity Sensor XSAV - M30 - Sn10mm - 6..150c/mn - 24..240VAC/DC - cable 2m

Adjustable Frequency Range	6-150 cyc/mn
Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-85 °C
Body Type	fixed
Cable Composition	2 x 0.34 mm²
Detection Face	frontal
Detector Flush Mounting Acceptance	flush mountable
Device Application	rotation monitoring
Differential Travel	3…15% of Fr
Discrete Output Function	1 NC
Enclosure Material	nickel plated brass
Front Material	PPS
Marking	CE
Marking 1	CE
Material	metal
Operating Zone	0-8 mm
Output Circuit Type	AC/DC
Product Certifications	UL# #CSA# #CCC
Product Or Component Type	sensor
Range Of Product	Telemecanique Inductive proximity sensors XS
Repeat Accuracy	3% of Sr
Repeat Accuracy 1	3% of Sr
Sensing Range	> 8…15 mm
Sensor Design	cylindrical M30
Sensor Name	XSA
Sensor Type	inductive proximity sensor
Series Name	Application
Size	81 mm
Thread Type	M30 x 1.5
Type Of Output Signal	discrete
Wire Insulation Material	PvR
Wiring Technique	2-wire
