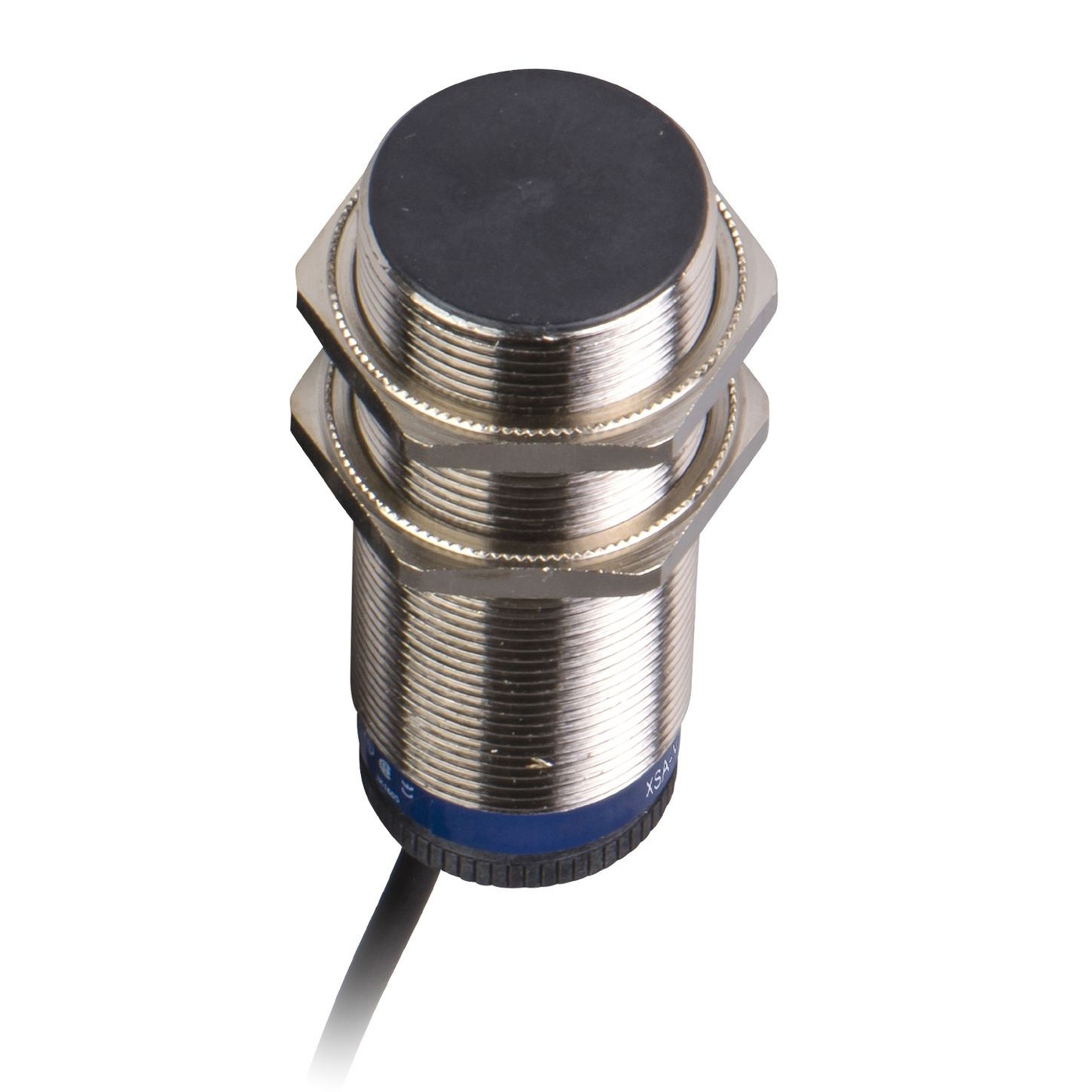

Square D XSAV12373

Name: Square D XSAV12373
Brand: Square D
SKU: CS1654011
Availability: OutOfStock

SKU: CS1654011MPN: XSAV12373

Inductive proximity sensors XS, Rotation monitoring, M30, Sn10mm, 120...3000c/mn, 12...48 VDC, cable 2 m

Product Details

Rot. Monitoring, M30, Sn10mm, 120..3000c/mn, 12..48VDC, cable 2m

Adjustable Frequency Range	120-3000 cyc/mn
Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-85 °C
Body Type	fixed
Cable Composition	3 x 0.34 mm²
Detection Face	frontal
Detector Flush Mounting Acceptance	flush mountable
Device Application	rotation monitoring
Differential Travel	3…15% of Fr
Discrete Output Function	1 NC
Discrete Output Type	PNP
Enclosure Material	nickel plated brass
Front Material	PPS
Marking	CE
Marking 1	CE
Material	metal
Operating Zone	0-8 mm
Output Circuit Type	DC
Product Certifications	CCC# #CSA# #UL
Product Or Component Type	sensor
Range Of Product	Telemecanique Inductive proximity sensors XS
Repeat Accuracy	3% of Sr
Repeat Accuracy 1	3% of Sr
Sensing Range	> 8…15 mm
Sensor Design	cylindrical M30
Sensor Name	XSA
Sensor Type	inductive proximity sensor
Series Name	Application
Size	81 mm
Thread Type	M30 x 1.5
Type Of Output Signal	discrete
Wire Insulation Material	PvR
Wiring Technique	3-wire
