Square D XS612B1MAL2

Name: Square D XS612B1MAL2
Brand: Square D
SKU: CS1674042
Availability: OutOfStock

SKU: CS1674042MPN: XS612B1MAL2UPC/EAN: 3389110147216

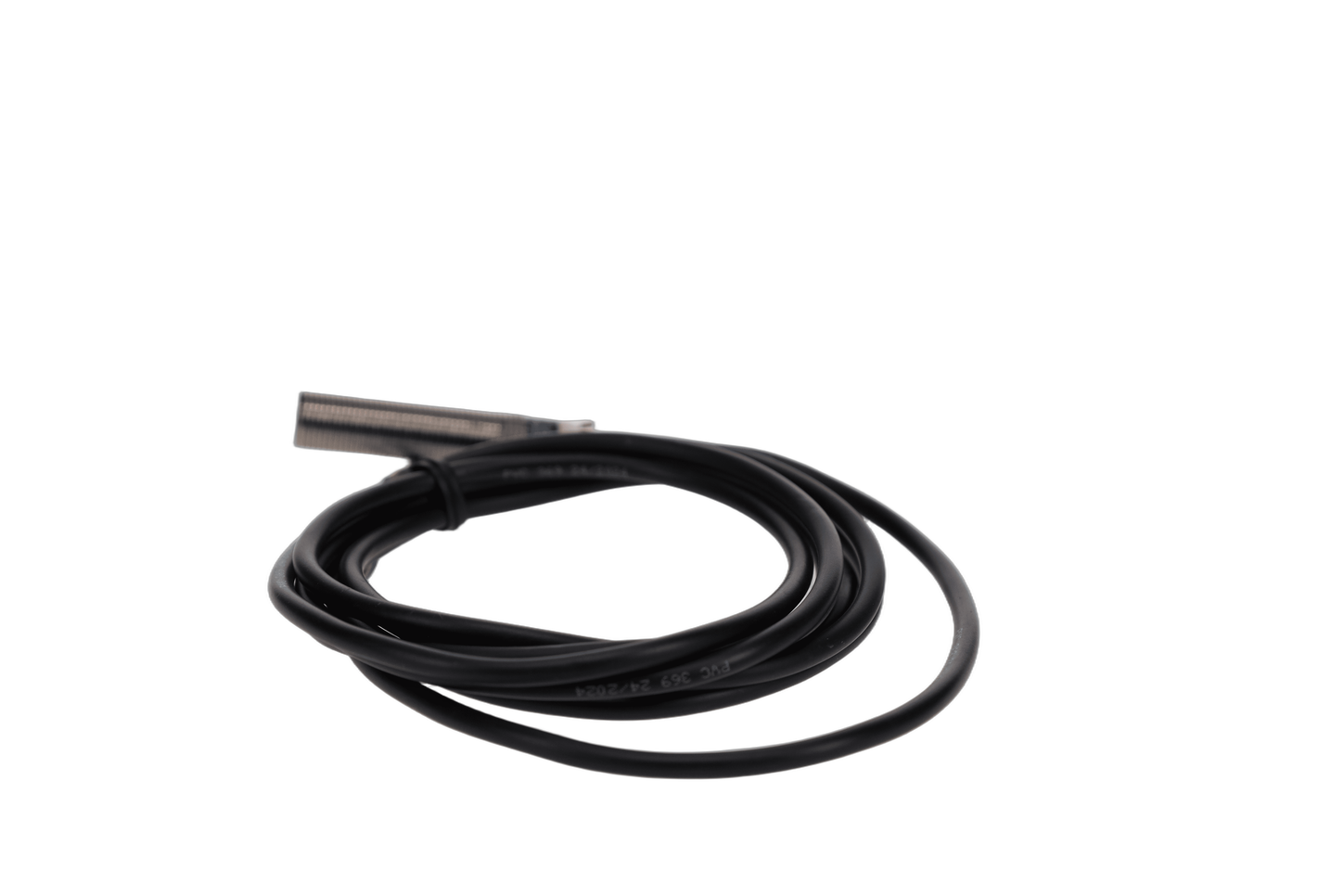

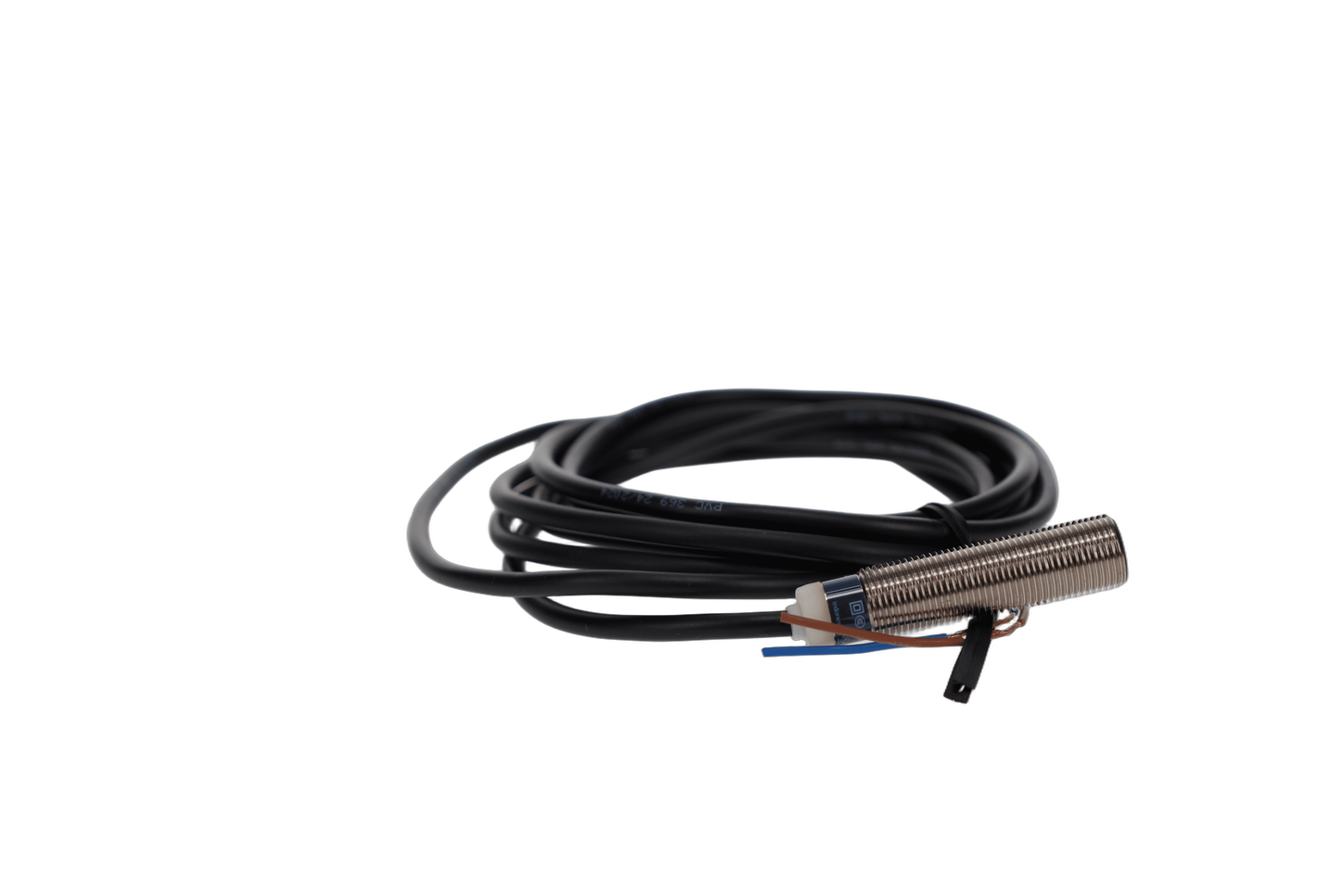

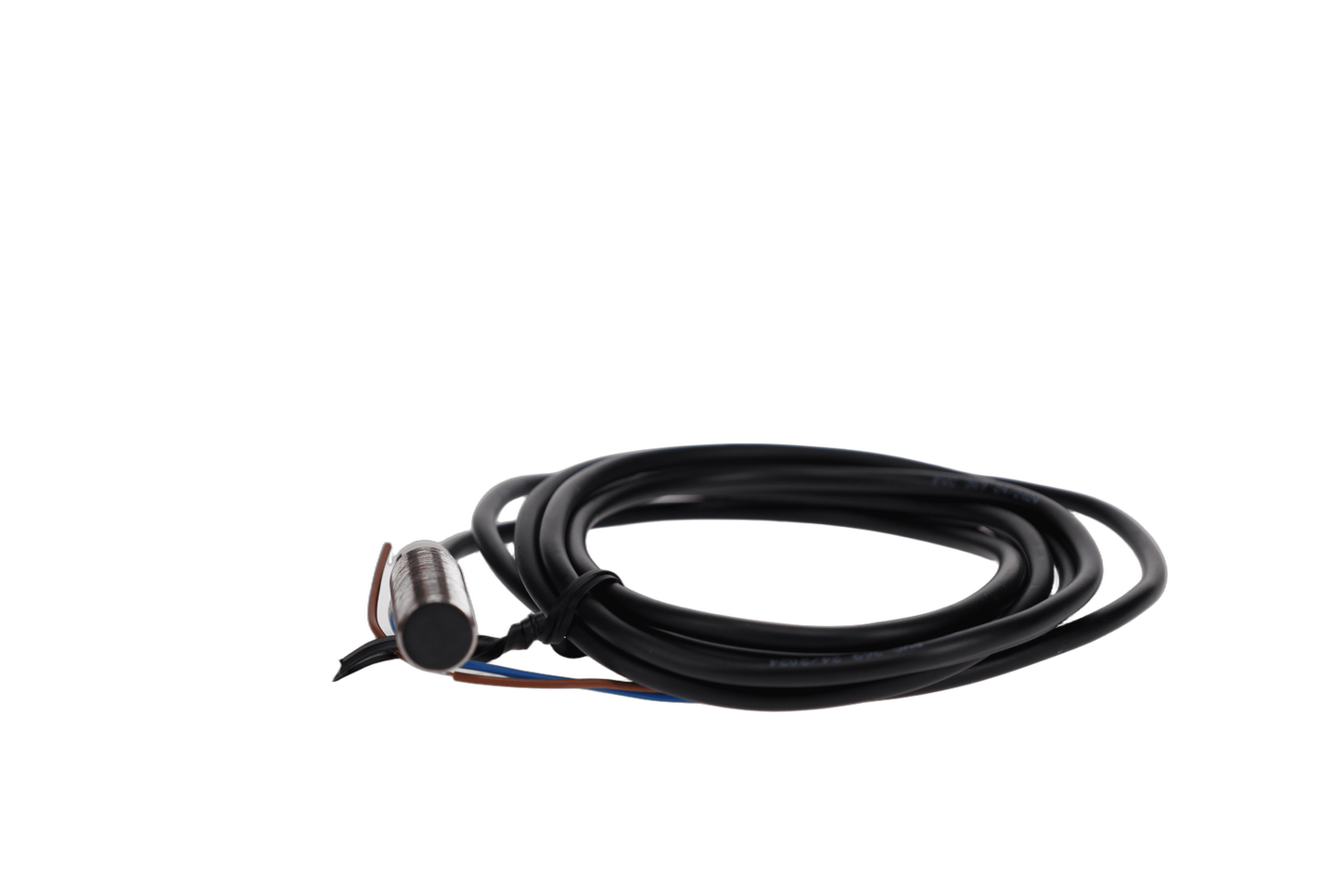

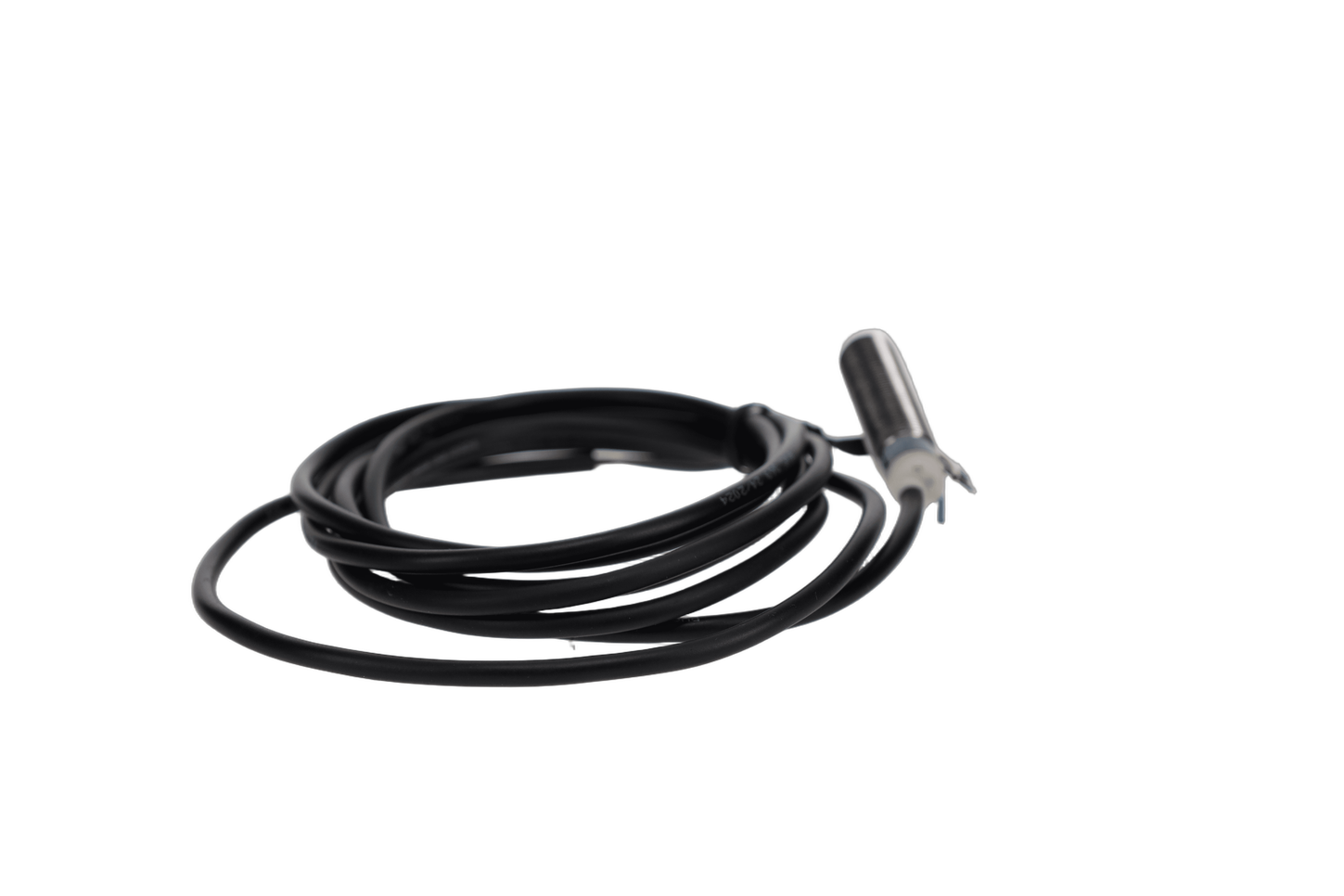

Inductive proximity sensors XS, inductive sensor XS6 M12, L54mm, brass, Sn4mm, 24...240VAC/DC, cable 2 m

Product Details

OSISENSE XS INDUCTIVE SENSOR XS6 M12

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-85 °C
Body Type	fixed
Cable Composition	2 x 0.34 mm²
Detection Face	frontal
Detector Flush Mounting Acceptance	flush mountable
Differential Travel	1…15% of Sr
Discrete Output Function	1 NO
Enclosure Material	nickel plated brass
Front Material	PPS
Marking	CE
Marking 1	CE
Material	metal
Maximum Delay First Up	20 ms
Maximum Delay Recovery	0.2 ms
Maximum Delay Response	0.5 ms
Operating Zone	0-3.2 mm
Output Circuit Type	AC/DC
Product Certifications	UL# #CSA
Range Of Product	Telemecanique Inductive proximity sensors XS
Sensing Range	> 2.5…4 mm
Sensor Design	cylindrical M12
Sensor Name	XS6
Sensor Type	inductive proximity sensor
Series Name	general purpose
Size	54 mm
Thread Type	M12 x 1
Type Of Output Signal	discrete
Wire Insulation Material	PvR
Wiring Technique	2-wire
