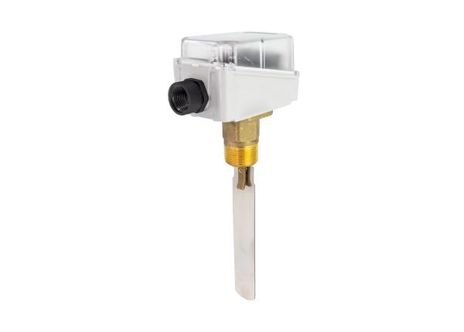

ACI SF1K-US
SKU: CS6291258MPN: SF1K-USAlternate Part #: 151604
Liquid Flow Switch, SPDT, IP65, Paddle Kit, 1-8” Pipe Size
Contact us for pricing and availability
Product Details
Liquid Flow Switch, SPDT, IP65, Paddle Kit, 1-8” Pipe Size
Product Family Specifications
| Flow Rate | See Flow Rate Table in Datasheet |
|---|---|
| Connections | NPT 1” |
| Contact Form | Form 1C (SPDT Contact) |
| Base Material | Brass |
| Product Weight | 2.1 lbs. (0.95 kg) |
| Paddle Material | Stainless steel AISI 316L |
| Agency Approvals | CE |
| Enclosure Rating | IP65, Class 1 |
| Housing Material | Base in ABS, transparent PC cover |
| Maximum Pressure | 159.5 PSI (11 bar) |

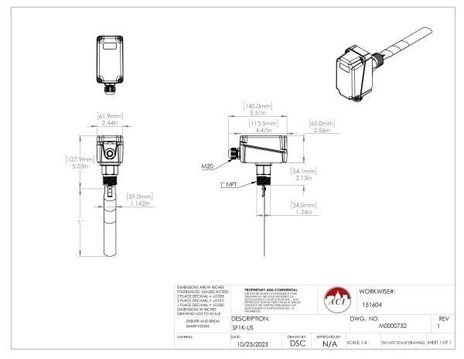

| Product Dimensions | 5.51” (140 mm) x 2.44” (62 mm) x 2.56” (65 mm) |
| Pipe Sizes Accepted | 1 to 8” (25.4 to 203.2 mm) Diameter |
| Contact (Load) Rating | 15 (8) A, 24 to 250 VAC |
| Operating Temperature Range | Liquid Temperature: -40 to 120ºC (-40 to 248ºF) |
| Storage Temperature | RH Range | -40 to 85ºC (-40 to 185ºF) | \< 95% RH, Non-Condensing |
| Enclosure Operating Temperature Range | -40 to 85ºC (-40 to 185ºF) | 10 to 90% RH, non-condensing |
Specifications
| SKU | CS6291258 |
|---|---|
| MPN | SF1K-US |
| Alternate Part # | 151604 |
You may also like
ACI VPT-8"
Contact us for pricing and availability

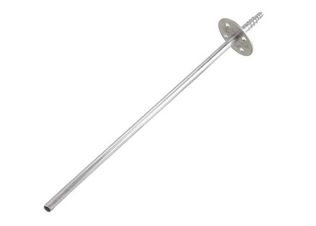

ACI SPT-8.0"
Contact us for pricing and availability

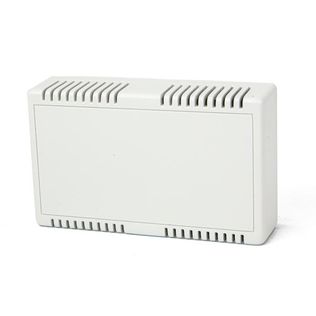

ACI NZH-101U
Contact us for pricing and availability
ACI DBL-205B
Contact us for pricing and availability
ACI DBL-205L
Contact us for pricing and availability

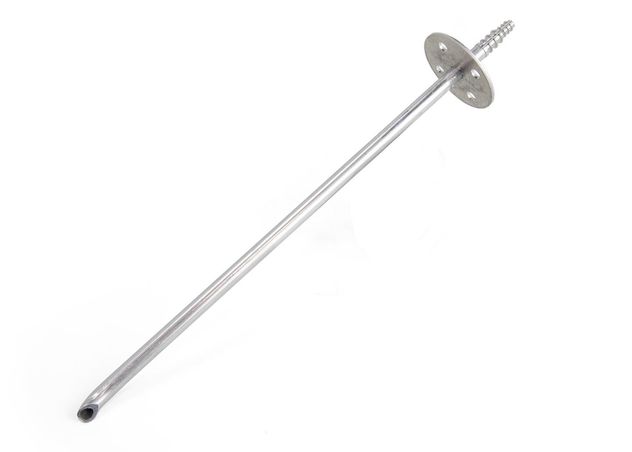

ACI VPT KIT 8"
Contact us for pricing and availability

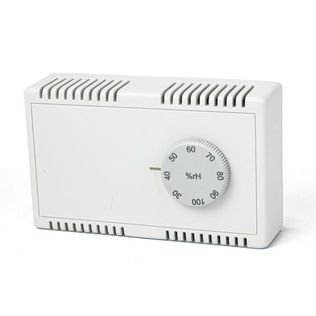

ACI NZH-101

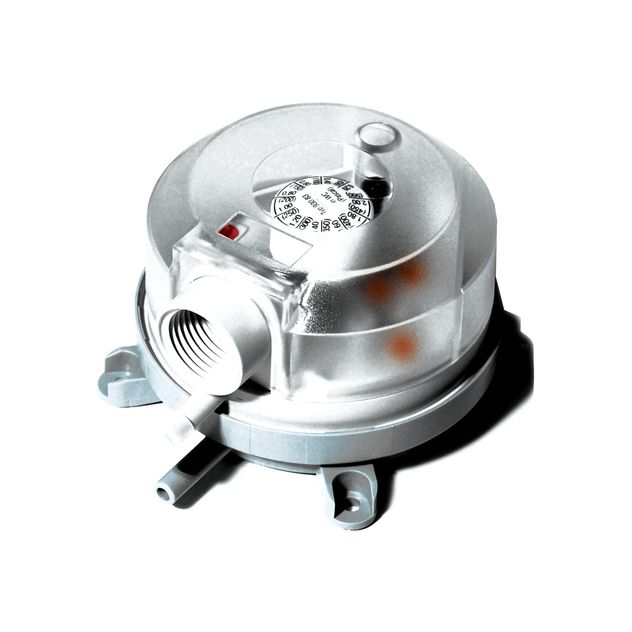

Contact us for pricing and availabilityACI DBL-205D
Contact us for pricing and availabilityACI DBL-205E
Contact us for pricing and availability

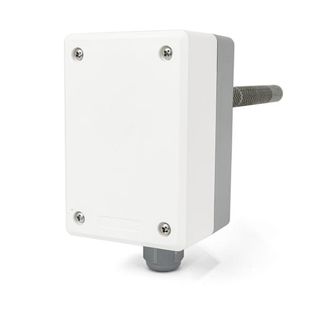

ACI HG80I
