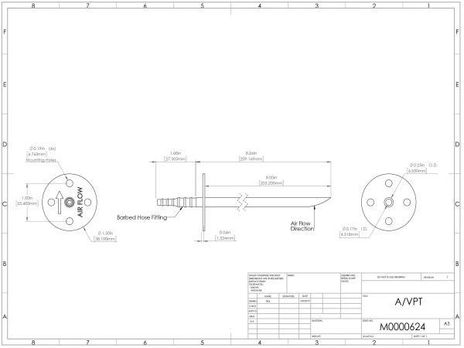

ACI VPT-8"
SKU: CS6286637MPN: VPT-8"Alternate Part #: 125008

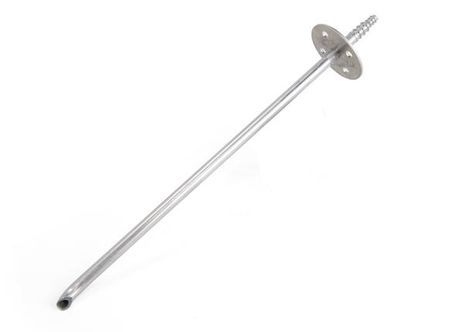

Velocity Pitot Tube, Aluminum, 8”
Contact us for pricing and availability
Product Details
Velocity Pitot Tube, Aluminum, 8”
Product Configuration
| Length | 8” |
|---|---|
| Options | None |
Product Family Specifications
| Probe Material | Aluminum |
|---|---|
| Product Weight | VPT: 0.022 lbs (10g) VPT-8”: 0.034 lbs (15.4g) |
| Agency Approvals | RoHS2, WEEE, Reach |
| Tube Mounting Direction | Tip opens directly into the air stream (Mounting arrow on Probe) |
| Operating Humidity Range | 0 to 90% RH (non-condensing) |
| Mounting Holes (Diameter) | 3/16” (4.76 mm) |
| Storage Temperature Range | -40 to 185ºF (-40ºC to 85ºC) |
| Impact Tube Mounting Angle | Parallel to air stream (+/- 7 Degrees) |
| Mounting Flange (Diameter) | 1.50” (38.1 mm) |
| Operating Temperature Range | -40 to 185ºF (-40ºC to 85ºC) |
| Tubing Connection | Tubing Size | 45º Barbed Type (6 Places), accepts ⅛” through ¼” ID flexible plastic tubing |
| Measurement Probe Hole Size (Diameter) | ¼” (6.35 mm) |
| Probe Insertion Length \& Sensing Points | VPT: 4” (101.6 mm) | Single Point VPT-8”: 8” (203.2 mm) | Single Point |
Specifications
| SKU | CS6286637 |
|---|---|
| MPN | VPT-8" |
| Alternate Part # | 125008 |
