ACI HG80

Name: ACI HG80
Brand: ACI
SKU: CS6287288
Availability: OutOfStock

SKU: CS6287288MPN: HG80Alternate Part #: 132831

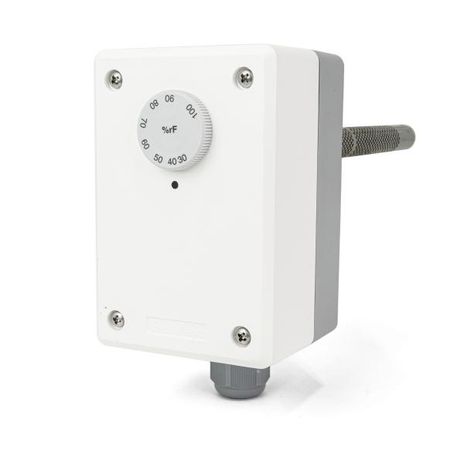

Humidistat, Duct, External Setpoint Dial, SPDT, IP54

Product Details

Humidistat, Duct, External Setpoint Dial, SPDT, IP54

Enclosure	IP54
Accuracy (Humidity)	+/-5%

Output	On/Off, single stage control, with (1) microswitch output
Accuracy	Above 50% RH: ± 3-3.5% RH \| Below 50% RH: ± 4.0% RH
Hysteresis	4-5% RH, fixed
Cable Entry	(1) M20 compression fitting, removable, hole fits ½ in conduit connector
Contact Form	SPDT
Response Time	\< 120 sec for 63% step change, at 394 ft/min (2 m/sec)
Sensing Media	Non-aggressive air
Probe Material	High-grade steel, perforated, non-corroding
Product Weight	1.6 lb (0.7 kg)
Sensing Element	Polyga® bands of multi-synthetic fibers, water-resistant, washable, saturation without damage
Agency Approvals	CE
Enclosure Rating	W/ External Setpoint: Nema 13(IP54) W/ Internal Setpoint: Nema 4X (IP64)
Enclosure Material	ABS, fire-retardant
Operating RH Range	30-100% RH

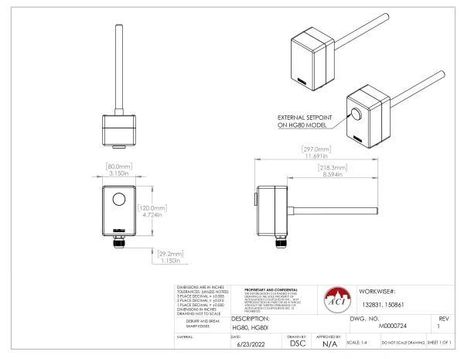

Product Dimensions	(H) 4.73” (120 mm) x (W) 3.15” (80 mm) x (D) 2.84” (72 mm)\| Duct Probe: (L) 8.67” (220 mm) x (D) 0.63-0.79” (16-20mm)
RH Measurement Range	0-100% RH
Relay Contact Rating	15A resistive @ 250 VAC \| 2A resistive @ 250 VDC \| 0.25A @ 250 VDC
Connections \| Wire Size	Screw Terminal Blocks \| Max. 14 AWG (2.5 mm2)
Storage Temperature Range	-22 to 140°F (-30 to 60°C)
Operating Temperature / RH	32 to 140°F (0 to 60°C), 0-95% RH, non-condensing
Low-Level Setpoint Adjustment	30-100% RH
Permissible Air Velocity (Maximum)	1575 ft/min (8 m/sec); with gauze protection: 2970 ft/min (15 m/sec)
