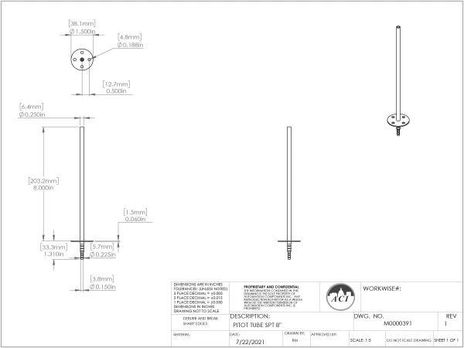

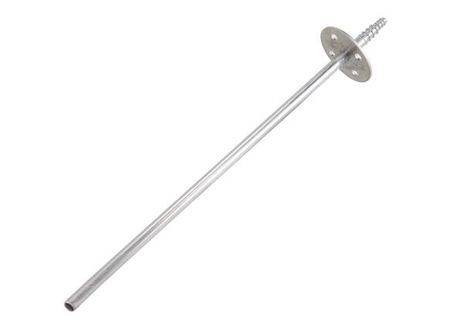

ACI SPT-8.0"
SKU: CS6285365MPN: SPT-8.0"Alternate Part #: 108976
Static Pitot Tube, Aluminum, 8”
$17.05
UnitAvailable on backorder
Product Details
Static Pitot Tube, Aluminum, 8”
Product Configuration
| Length | 8” |
|---|
Product Family Specifications
| Probe Material | Aluminum |
|---|---|
| Product Weight | SPT-3.5“: 0.022 lbs (10g) SPT-8.0”: 0.034 lbs (15.4g) |
| Agency Approvals | RoHS2, WEEE, Reach |
| Tube Mounting Direction | Tip opens parallel to the air stream |
| Operating Humidity Range | 0 to 90% RH non-condensing |
| Mounting Holes (Diameter) | 3/16” (4.76 mm) |
| Storage Temperature Range | -40 to 185ºF (-40 to 85ºC) |
| Mounting Flange (Diameter) | 1.50” (38.1 mm) |
| Static Tube Mounting Angle | Perpendicular to the duct (90 Degrees +/- 3 Degrees) |
| Operating Temperature Range | -40 to 185ºF (-40 to 85ºC) |
| Tubing Connection | Tubing Size | 45º Barbed Type (6 Places), accepts ⅛” through ¼” ID flexible plastic tubing |
| Measurement Probe Hole Size (Diameter) | ¼” (6.35mm) |
| Probe Insertion Length \& Sensing Points | SPT-3.5”: (88.9 mm) | Single Point SPT-8.0”: 8” (203.2 mm) | Single Point |
Specifications
| SKU | CS6285365 |
|---|---|
| MPN | SPT-8.0" |
| Alternate Part # | 108976 |
