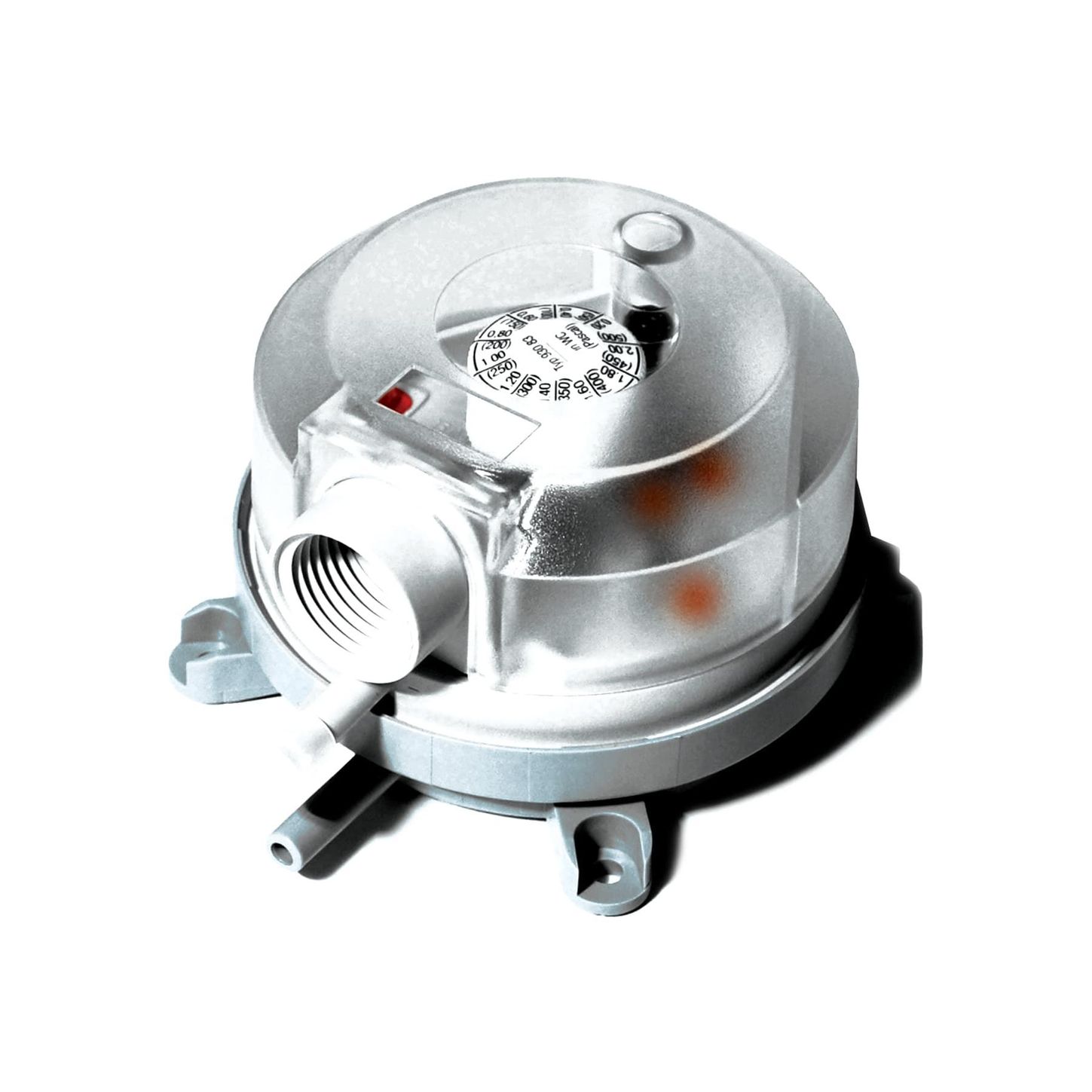

ACI DBL-205D

Name: ACI DBL-205D
Brand: ACI
SKU: CS6285288
Availability: OutOfStock

SKU: CS6285288MPN: DBL-205DAlternate Part #: 102424

Differential Pressure Switch, 0.8 to 4.0 inWC, SPDT, Auto Reset, NEMA 3 Enclosure

Product Details

Differential Pressure Switch, 0.8 to 4.0 inWC, SPDT, Auto Reset, NEMA 3 Enclosure

Span	0.80 to 4.0 inWC

Media Types	Air and other non-combustible, non-aggressive gases
Product Weight	DBL Series: 0.40 lbs (0.20 kg) DBZ-06: 0.16 lbs (0.072 kg)
Life Expectancy	1,000,000 cycles
Agency Approvals	CE, ISO 9001, RoHS2, WEEE
Enclosure Rating	NEMA 3 (IP54)
Maximum Pressure	40” wc (10 kPa)
Conduit Knockouts	Accepts ½” NPT Conduit
Diaphragm Material	Silicone
Enclosure Material	Base \= PA6.6 / Cover \= Polystyrene (Transparent)
Mounting Direction	Any vertical plane
Product Dimensions	4.00” x 2.30” (100 x 58 mm)
Contact Arrangement	SPDT (Form 1C) w/ Automatic Reset
Contact (Load) Rating	250 VAC maximum, 1.5A Resistive (0.4A Inductive)
Electrical Connections	Spade (Maximum 16 AWG (1.5 mm2))
Sample Line Connections	Accepts 3/16” ID (8mm) Push on plastic/poly tubing
Storage Temperature Range	-4 to 185ºF (-20 to 85ºC)
Adjustable Set Point Range	DBL-205L: 0.08 to 0.8” wc DBL-205B: 0.20 to 2.0” wc DBL-205D: 0.80 to 4.0” wc DBL-205E: 2.0 to 10.0” wc
Operating Temperature Range	-4 to 185ºF (-20 to 85ºC)
Adjustable Set Point Switching Differential	Factory Default: +/- 15% of Trip / Set Point DBL-205L: 0.04 to 0.08” wc DBL-205B: 0.08 to 0.16” wc DBL-205D: 0.40 to 0.80” wc DBL-205E: 0.60 to 1.20” wc
