ACI VPT

SKU: CS6285320MPN: VPTAlternate Part #: 103010

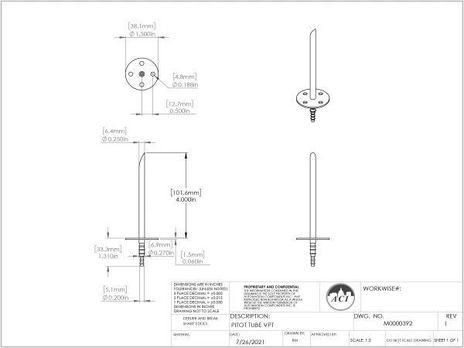

Velocity Pitot Tube, Aluminum, 4”

Product Details

Velocity Pitot Tube, Aluminum, 4”

Length	4”
Options	None

Probe Material	Aluminum
Product Weight	VPT: 0.022 lbs (10g) VPT-8”: 0.034 lbs (15.4g)
Agency Approvals	RoHS2, WEEE, Reach
Tube Mounting Direction	Tip opens directly into the air stream (Mounting arrow on Probe)
Operating Humidity Range	0 to 90% RH (non-condensing)
Mounting Holes (Diameter)	3/16” (4.76 mm)
Storage Temperature Range	-40 to 185ºF (-40ºC to 85ºC)
Impact Tube Mounting Angle	Parallel to air stream (+/- 7 Degrees)
Mounting Flange (Diameter)	1.50” (38.1 mm)
Operating Temperature Range	-40 to 185ºF (-40ºC to 85ºC)
Tubing Connection \| Tubing Size	45º Barbed Type (6 Places), accepts ⅛” through ¼” ID flexible plastic tubing
Measurement Probe Hole Size (Diameter)	¼” (6.35 mm)
Probe Insertion Length \& Sensing Points	VPT: 4” (101.6 mm) \| Single Point VPT-8”: 8” (203.2 mm) \| Single Point
