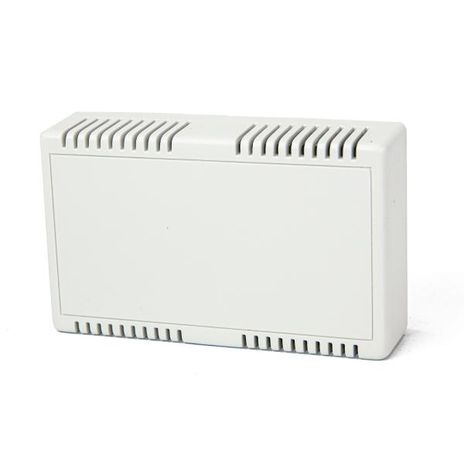

ACI NZH-101U

Name: ACI NZH-101U
Brand: ACI
SKU: CS6287382
Availability: OutOfStock

SKU: CS6287382MPN: NZH-101UAlternate Part #: 133624

Humidstat, Room, Internal Setpoint Dial, SPDT, NEMA 1

Product Details

Humidstat, Room, Internal Setpoint Dial, SPDT, NEMA 1

Humidity Output	Switch - SPDT (Internal)

Output	On/Off, single stage control, with (1) microswitch output
Accuracy	± 3.0% RH
Hysteresis	4% RH, fixed
Contact Form	SPDT
Response Time	\< 72 sec for 50% step change, at 394 ft/min (2 m/sec)
Sensing Media	Non-aggressive air
Product Weight	1.6 lb (0.7 kg)
Sensing Element	Polyga® bands of multi-synthetic fibers, water-resistant, washable, saturation without damage
Agency Approvals	CE
Enclosure Rating	Nema1 (IP20)
Enclosure Material	ABS, fire-retardant

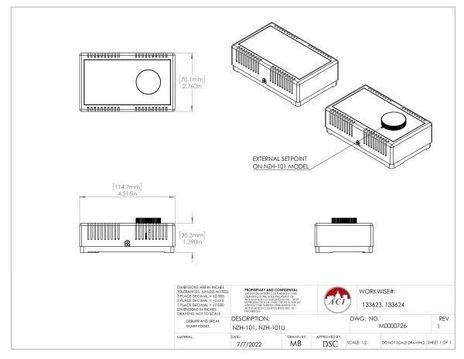

Product Dimensions	(H) 2.8” (70 mm) x (W) 4.6” (115 mm) x (D) 1.4” (35 mm)
enclosure Knockouts	Slot entry, backside of enclosure base
RH Measurement Range	0-100% RH
Relay Contact Rating	Humidify: 2A resistive @ 230 VAC \| Dehumidify: 5A inductive @ 230 VAC \| 1A inductive @ 230 VDC
Connections \| Wire Size	Screw Terminal Blocks \| Max. 16 AWG (1.5 mm2)
Operating Humidity Range	30-100% RH
Storage Temperature Range	-4 to 158°F (-20 to 70°C)
Operating Temperature / RH	32 to 140°F (0 to 60°C), 0-95% RH, non-condensing
Low-Level Setpoint Adjustment	30-100% RH
Permissible Air Velocity (Maximum)	2970 ft/min (15 m/sec)
