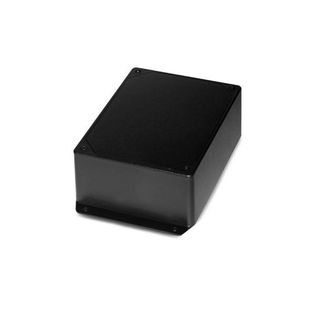

ACI RM2402DE

Name: ACI RM2402DE
Brand: ACI
SKU: CS6287084
Availability: OutOfStock

SKU: CS6287084MPN: RM2402DEAlternate Part #: 131062

Wireless, Sensor Receiver, Two Digital Outputs, NEMA 4X Enclosure

ACI RM2402DE, RT2630AE-AC, RT2630BE-AC-10, RT2630CE-AC-10, RT2630CE-AC-30

Product Details

Wireless, Sensor Receiver, Two Digital Outputs, NEMA 4X Enclosure

Product Configuration

Enclosure	NEMA 4X

Product Family Specifications

Wire Size	16 AWG (1.31 mm2) to 26 AWG (0.129 mm2)
Connections	Screw Terminal Blocks
Data Protocol	IEEE 802.15.4-2003/2006
Product Weight	Standard: 1.45 lbs (0.66 kg) \| NEMA 4X: 1.475 lbs (0.67 kg)
Supply Current	300 mA
Supply Voltage	24 VAC, 60 Hz (Full wave rectified)
Relay Durability	Mechanical: 5,000,000 operations minimum @ 36K operations/hr Electrical: 100,000 operations minimum (under rated load @ 1.8K operations/hr)
Lost Signal Alarm	(1) SPDT, Dry contact relay, 1.0A, 30 VDC @ 104ºF (40ºC), 0.5A, 125 VAC @ 104ºF (40ºC) Resistive

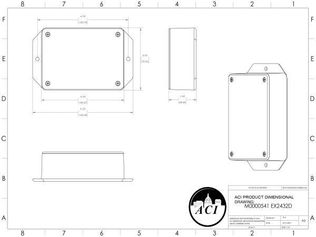

Product Dimensions	Standard: (L) 7.28” (184.91 mm) x (W) 4.72” (119.89 mm) x (H) 2.36“ (59.94 mm) NEMA 4X: (L) 6.73” (170.94 mm) x (W) 4.76” (120.90 mm) x (H) 2.16” (54.86 mm)
RF Characteristics	900 MHz, Operating Frequency 10 channels between 902 – 928 MHz Transmitter Power: 11 dBm \| Receiver Sensitivity: -11 dBm
Digital Output Type	Two (2) SPDT Pilot Duty Relays, Dry Contact
System Requirements	• Laptop with Windows 98, XP, Vista, Windows 7 or Windows 10, Ethernet Port, and 10 GB memory • Direct connection from PC to RM2402D using CK2432D serial to RJ11 Programming Cable • USB to Serial Adapter (Not provided by ACI) • IP Address of PC must have static address of 192.168.0.2 or above
Contact (Load) Rating	1.0A, 30 VDC @ 104ºF (40ºC), 0.5A, 125 VAC @ 104ºF (40ºC) Resistive
Transmission Distance	200 – 300 ft horizontally depending on building type and constructions, and typically one floor above and below the transceiver vertically
Configuration Software	Included; Data registers need to be configured prior to use
Operating Humidity Range	30 to 50% RH, Non condensing
Storage Temperature Range	-4 to 176ºF (-20 to 80ºC), 70% RH
Operating Temperature Range	32 to 140ºF (0 to 60ºC)
Terminal Block Torque Rating	0.37 ft-lb (0.5 Nm) Nominal
Enclosure Material \| Flammability Rating	Standard: ABS Plastic \| UL94-5VA \| NEMA 4X: Polycarbonate Plastic \| UL94 HB
