ACI RM2402D

Name: ACI RM2402D
Brand: ACI
SKU: CS6287083
Availability: OutOfStock

SKU: CS6287083MPN: RM2402DAlternate Part #: 131061

Wireless, Sensor Receiver, 2 Digital Outputs

Product Details

Wireless, Sensor Receiver, 2 Digital Outputs

Product Configuration

Enclosure	Standard

Product Family Specifications

Wire Size	16 AWG (1.31 mm2) to 26 AWG (0.129 mm2)
Connections	Screw Terminal Blocks
Data Protocol	IEEE 802.15.4-2003/2006
Product Weight	Standard: 1.45 lbs (0.66 kg) \| NEMA 4X: 1.475 lbs (0.67 kg)
Supply Current	300 mA
Supply Voltage	24 VAC, 60 Hz (Full wave rectified)
Relay Durability	Mechanical: 5,000,000 operations minimum @ 36K operations/hr Electrical: 100,000 operations minimum (under rated load @ 1.8K operations/hr)
Lost Signal Alarm	(1) SPDT, Dry contact relay, 1.0A, 30 VDC @ 104ºF (40ºC), 0.5A, 125 VAC @ 104ºF (40ºC) Resistive

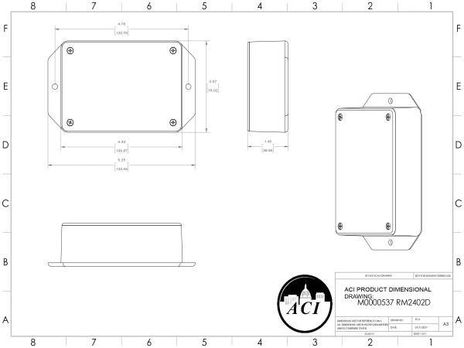

Product Dimensions	Standard: (L) 7.28” (184.91 mm) x (W) 4.72” (119.89 mm) x (H) 2.36“ (59.94 mm) NEMA 4X: (L) 6.73” (170.94 mm) x (W) 4.76” (120.90 mm) x (H) 2.16” (54.86 mm)
RF Characteristics	900 MHz, Operating Frequency 10 channels between 902 – 928 MHz Transmitter Power: 11 dBm \| Receiver Sensitivity: -11 dBm
Digital Output Type	Two (2) SPDT Pilot Duty Relays, Dry Contact
System Requirements	• Laptop with Windows 98, XP, Vista, Windows 7 or Windows 10, Ethernet Port, and 10 GB memory • Direct connection from PC to RM2402D using CK2432D serial to RJ11 Programming Cable • USB to Serial Adapter (Not provided by ACI) • IP Address of PC must have static address of 192.168.0.2 or above
Contact (Load) Rating	1.0A, 30 VDC @ 104ºF (40ºC), 0.5A, 125 VAC @ 104ºF (40ºC) Resistive
Transmission Distance	200 – 300 ft horizontally depending on building type and constructions, and typically one floor above and below the transceiver vertically
Configuration Software	Included; Data registers need to be configured prior to use
Operating Humidity Range	30 to 50% RH, Non condensing
Storage Temperature Range	-4 to 176ºF (-20 to 80ºC), 70% RH
Operating Temperature Range	32 to 140ºF (0 to 60ºC)
Terminal Block Torque Rating	0.37 ft-lb (0.5 Nm) Nominal
Enclosure Material \| Flammability Rating	Standard: ABS Plastic \| UL94-5VA \| NEMA 4X: Polycarbonate Plastic \| UL94 HB
