ACI RT2602B

Name: ACI RT2602B
Brand: ACI
SKU: CS2691929
Availability: OutOfStock

SKU: CS2691929MPN: RT2602BAlternate Part #: 130230

Wireless, Input Module (2 Digital Inputs), Battery Powered

Product Details

Wireless, Input Module (2 Digital Inputs), Battery Powered

Wire Size	16 AWG (1.31 mm2) to 26 AWG (0.129 mm2)
Connections	Screw Terminal Blocks
Battery Life	2-3 years typical
Data Protocol	IEEE 802.15.4-2003/2006
Product Weight	0.50 lbs (0.23 kg)
Supply Voltage	Battery: 1 (Duracell DL123A), Lithium 3V 1400 mAh
Data Transmission	75 seconds

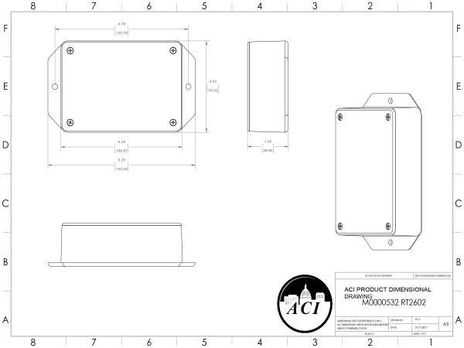

Product Dimensions	(L) 5.25” (133.35 mm) x (W) 3.07” (77.98 mm) x (H) 1.44” (36.58 mm)
RF Characteristics	900 MHz, Operating Frequency 10 channels between 902 – 928 MHz Transmitter Power: 11 dBm \| Receiver Sensitivity: -11 dBm
RH Measurement Range	5 to 65%, Non-condensing
Digital Inputs / Type	Two (2) Dry contact closures
Transmission Distance	200 – 300 ft horizontally depending on building type and constructions, and typically one floor above and below the transceiver vertically
Operating Temperature Range	14 to 140ºF (-10 to 60ºC)
Terminal Block Torque Rating	0.37 ft-lb (0.5 Nm) Nominal
Storage Temperature \| RH Range	-4 to 176ºF (-20 to 80ºC), 70% RH
Enclosure Material \| Flammability Rating	ABS Plastic \| UL94V-0
