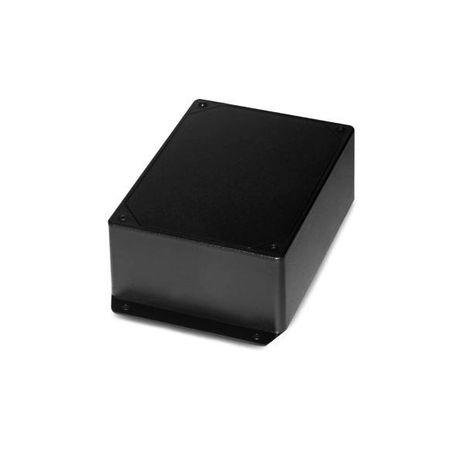

ACI RR2552B

Name: ACI RR2552B
Brand: ACI
SKU: CS6287030
Availability: OutOfStock

SKU: CS6287030MPN: RR2552BAlternate Part #: 130662

Wireless, Signal Repeater, 24VAC

Product Details

Wireless, Signal Repeater, 24VAC

Enclosure	Standard

Wire Size	16 AWG (1.31 mm²) to 26 AWG (0.129 mm²)
Connections	Screw Terminal Blocks
Data Protocol	IEEE 802.15.4-2003/2006
Product Weight	Standard: 1.65 lbs (0.75 kg) \| NEMA 4X: 1.675 lbs (0.76 kg)
Supply Current	300 mA
Supply Voltage	24 VAC, 60 Hz (full wave rectified)

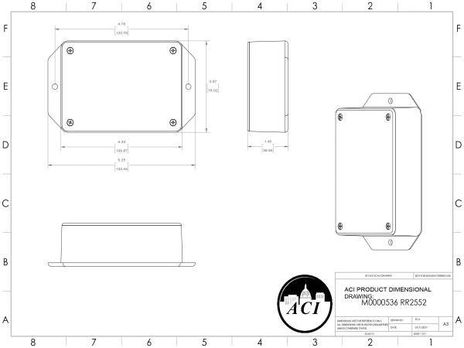

Product Dimensions	Standard: (L) 7.28” (184.91 mm) x (W) 4.72” (119.89 mm) x (H) 2.36“ (59.94 mm) NEMA 4X: (L) 6.73” (170.94 mm) x (W) 4.76” (120.90 mm) x (H) 2.16” (54.86 mm)
RF Characteristics	900 MHz, Operating Frequency 10 channels between 902 – 928 MHz Transmitter Power: 11 dBm \| Receiver Sensitivity: -11 dBm
Network Addressable	1 to 64, Dip switch selectable \| All switches set to OFF \= Address 1 (default) Address of repeater must match the Network ID of the receiver/transceiver
Transmission Distance	200 – 300 ft horizontally depending on building type and constructions, and typically one floor above and below the transceiver vertically
Operating Humidity Range	30 to 50% RH, Noncondensing
Storage Temperature Range	-4 to 176ºF (-20 to 80ºC), 70% RH
Operating Temperature Range	14 to 140ºF (-10 to 60ºC)
Terminal Block Torque Rating	0.37 ft-lb (0.5 Nm) Nominal
Enclosure Material \| Flammability Rating	Standard: ABS Plastic \| UL94-5VA \| NEMA 4X: Polycarbonate Plastic \| UL94 HB
