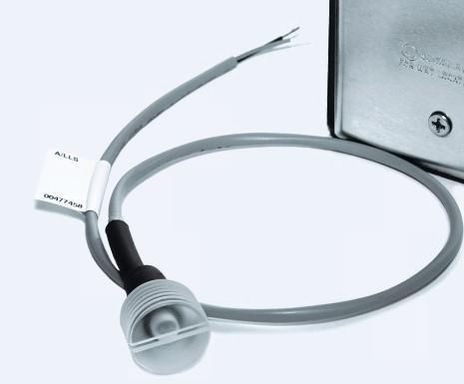

ACI A/LLS

Name: ACI A/LLS
Brand: ACI
SKU: CS6286356
Price: 37.14 USD
Availability: OutOfStock

SKU: CS6286356MPN: A/LLSAlternate Part #: 122465

Light Level Sensor (Resistive Output), No Enclosure

$37.14

Unit

Available on backorder

Quantity

remove

add

Product Details

Light Level Sensor (Resistive Output), No Enclosure

Product Configuration

Enclosure	None

Product Family Specifications

Output Signals	4-20 mA (3 Wire)
Process Thread	½” NPT
Product Weight	“LLS”: 0.054 lbs (0.025 kg) \| “LLS-T”: 0.85 lbs (0.386 kg)
Supply Voltage	24 to 35 VDC
Input Impedance	150K Ohms
Maximum Voltage	100V pk
Agency Approvals	RoHS, WEEE
Housing Material	Acrylic / Polycarbonate
Resistance @ Dark	Minimum: 500K
Conductor Material	Tin Plated Copper
Operating RH Range	5 to 95% non-condensing
Product Dimensions	(L) 4.58” (116.3 mm) x (W) 2.82” (71.63 mm) x (H) 2.25” (57.15 mm)
Snaptrack Material	Polyvinyl Chloride (PVC)
Response Time @ Dark	5 Seconds
Connections \| Wire Size	Screw Terminal Blocks \| 16 (1.31 mm2) to 26 AWG (0.129 mm2)
Maximum Load Resistance	500 Ohms
Operating Humidity Range	0-95% Relative Humidity, non-condensing
Storage Temperature Range	-0 to 160ºF (-40 to 71ºC)
Operating Temperature Range	35 to 131ºF (1.5 to 55ºC)
Continuous Power Dissipation	80 mW
Lead Length \| Conductor Size	18” (45.7cm) \| 0.16” nominal (2.69 mm) \| 22 AWG (0.65mm)
Resistance @ 10 Lux (@25ºC)	Typical: 24K Ohms \| Minimum: 12K Ohms \| Maximum: 36K Ohms
Terminal Block Torque Rating	0.5 Nm (Minimum); 0.6 Nm (Maximum)
Light Level Measurement Range	Model Dependent: 100 foot-candles (0-100) / 500 foot-candles (0-500)
Snaptrack Flammability Rating	UL94 V-0
Response Time @ 1 Foot-Candles	Rise (1-1/e): 78mS \| Fall (1/e): 8mS
Lead Wire Insulation \| Wire Rating	Polyvinylchloride Unshielded Cable \| UL 2464 80C 300V; CSA AWM II A/B FT4
Resistance @ 2 Foot-Candles (@25ºC)	Typical: 12K
Enclosure Specifications (Material, Operating Temperature, NEMA Ratings)	Aluminum, -40 to 121ºC (-40 to 250ºF), NEMA 3R
