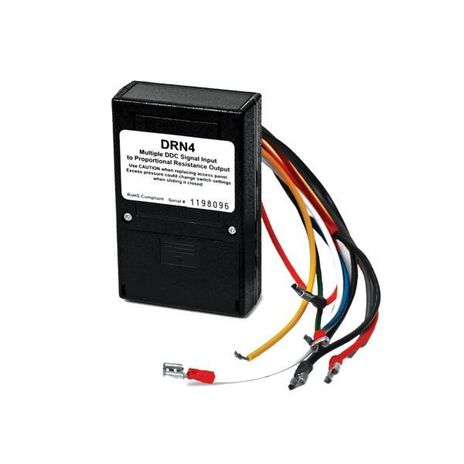

ACI DRN4

Name: ACI DRN4
Brand: ACI
SKU: CS6286778
Availability: OutOfStock

SKU: CS6286778MPN: DRN4Alternate Part #: 127200

PWM/Analog/Floating Point Input to Resistance Output, 0 to 135 Ohm Resistance Network, Plastic Enclosure

Product Details

PWM/Analog/Floating Point Input to Resistance Output, 0 to 135 Ohm Resistance Network, Plastic Enclosure

Input Pulse Range (Seconds)	Selectable timing up to 25 sec

Mounting	Mounts directly to ½” knockout on actuator housing
Resolution	32 steps
Product Weight	0.43 lbs. (0.196 Kg)
Supply Current	130 mA maximum
Supply Voltage	24 VAC or 24 VDC, +/-10%
Agency Approvals	RoHS2, WEEE
Input Pulse Source	Relay Contact Closure, Transistor, Triac (Adapter Required)

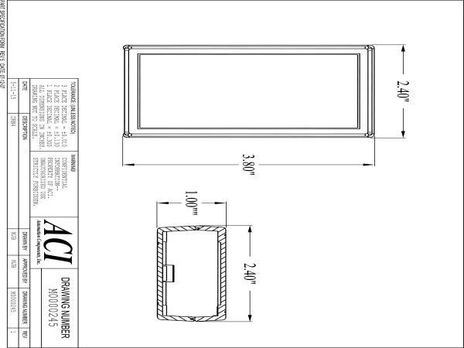

Product Dimensions	(L) 2.40” (W) 3.80” (H) 1.00” (60.96 x 96.52 x 25.4 mm)
Snaptrack Material	Polyvinyl Chloride (PVC)
Digital Output Type	Form “C” Relays
Relay Contact Rating	1A @ 30 VDC / 125 VAC
Relay Electrical Life	100,000 operation @ 1A
Relay Mechanical Life	10,000,000 operations
Connections \| Wire Size	Color coded 18 AWG wire leads with spade connectors
Off Time Between Pulses	80 milliseconds
Output Resistance Range	0 to 135Ω (3 watts)
Operating Humidity Range	10 to 95% non-condensing
Storage Temperature Range	-20 to 150°F (-28.9 to 65.5°C)
Operating Temperature Range	35 to 120°F (1.7 to 48.9°C)
Snaptrack Flammability Rating	UL94 V-0
Input Pulse Trigger Level (@ Impedance)	5-24 VDC/VAC
Input Current Signal Range (@ Impedance)	0-20 mA, 4 to 20 mA @ 250Ω
Input Voltage Signal Range (@ Impedance)	0 to 5 VDC \| 1 to 5 VDC \| 0 to 10 VDC \| 2 to 10 VDC @ 100,000Ω
Floating Point / Tri-State Rates of Change	55 seconds for full output span
Floating Point / Tri-State Input Signal Source	Relay, Contact Closure, Transistor, or Triac (Adapter Required)
Floating Point / Tri-State Input Signal Trigger Level	5-24 VDC/VAC
