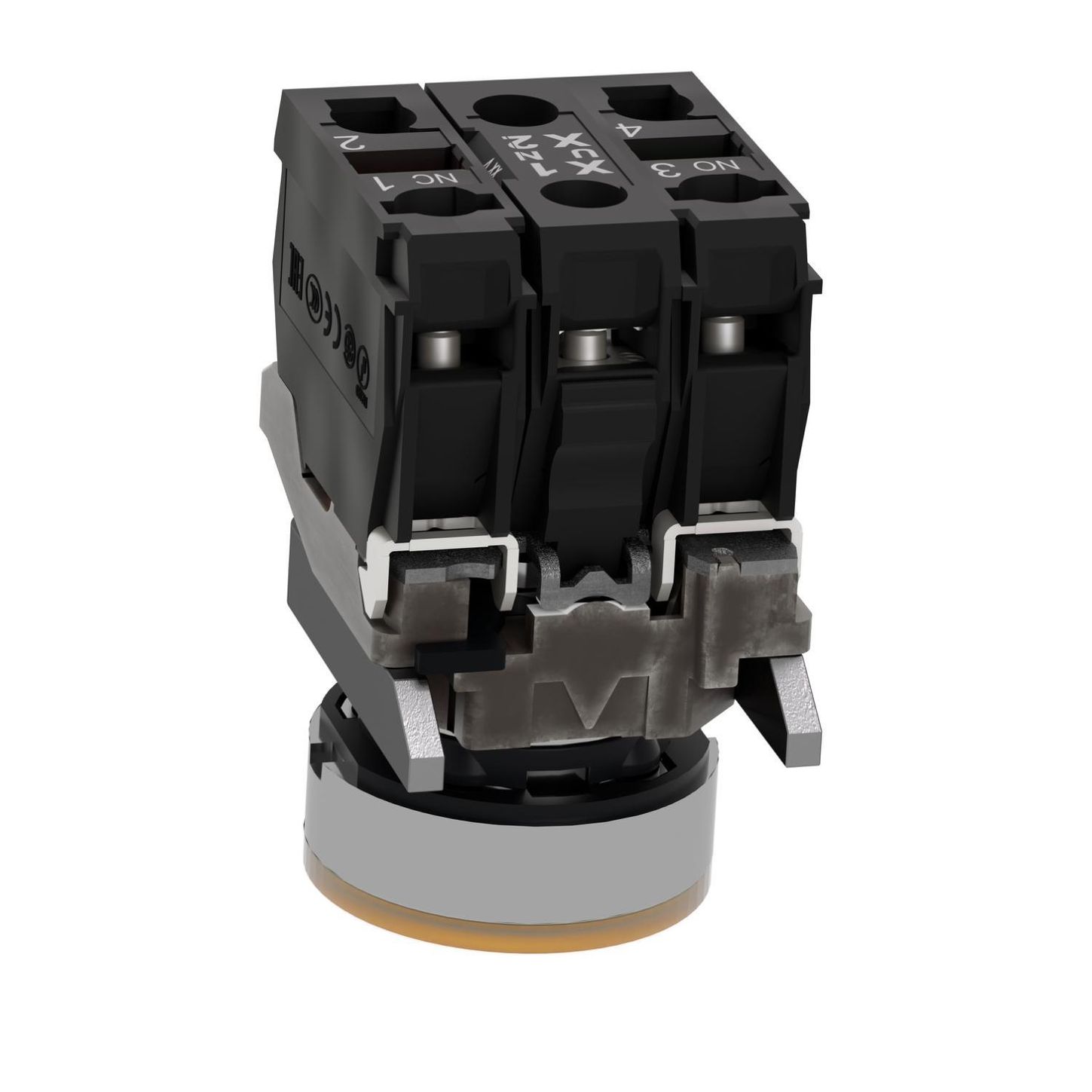

Schneider Electric XB4BW35B5

Name: Schneider Electric XB4BW35B5
Brand: Schneider Electric
SKU: CS5744241
Price: 119.78 USD
Availability: InStock

SKU: CS5744241MPN: XB4BW35B5UPC/EAN: 3389110892062

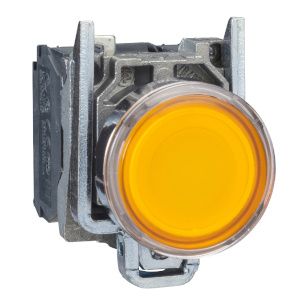

Illuminated push button, Harmony XB4, metal, orange flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC

$119.78

Unit

2 in stock

Quantity

remove

add

Product Details

H6941 Illuminated Push Button 22 mm Maintained / Momentary Type of Operator Round Guarded Button Basic Material Metal Metal Head Material 1NO/1NC Contact Form Chrome Plated Metal Bezel Color Yellow Lamp Module Voltage 24V AC/DC Lamp Module Type Full Voltage Lamp Type LED Lamp Voltage 24V AC/DC Contact Rating 10A @ 600V AC NEMA Contact Rating Designation A600/Q600 Number of Operators 1 NEMA Rating 1 12 13 2 3 4 4X IP Rating 66 Standards CE CSA UL

Attributes

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Bulb Base	integral LED
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	1 NO + 1 NC
Contacts Usage	standard contacts
Current Consumption	18 mA
Device Presentation	complete product
Device Short Name	XB4
Fixing Collar Material	zamak
Head Type	standard
Light Source	protected LED
Mechanical Durability	10000000 cycles
Mounting Diameter	22 mm
Operator Additional Information	with plain lens
Product Certifications	LROS (Lloyds register of shipping)# #DNV# #GL# #UL listed# #CSA# #BV
Product Or Component Type	illuminated push-button
Protective Treatment	TH
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Signalling Type	steady
Signalling Type 1	steady
Standards	EN/IEC 60947-5-5# #EN/IEC 60947-1# #EN/IEC 60947-5-1# #CSA C22.2 No 14# #EN/IEC 60947-5-4# #JIS C8201-5-1# #UL 508# #JIS C8201-1
Terminals Description Iso N 1	(13-14)NO# #(21-22)NC
