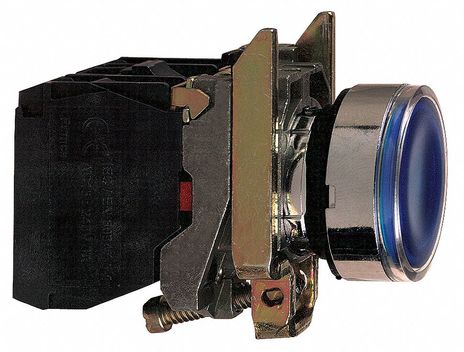

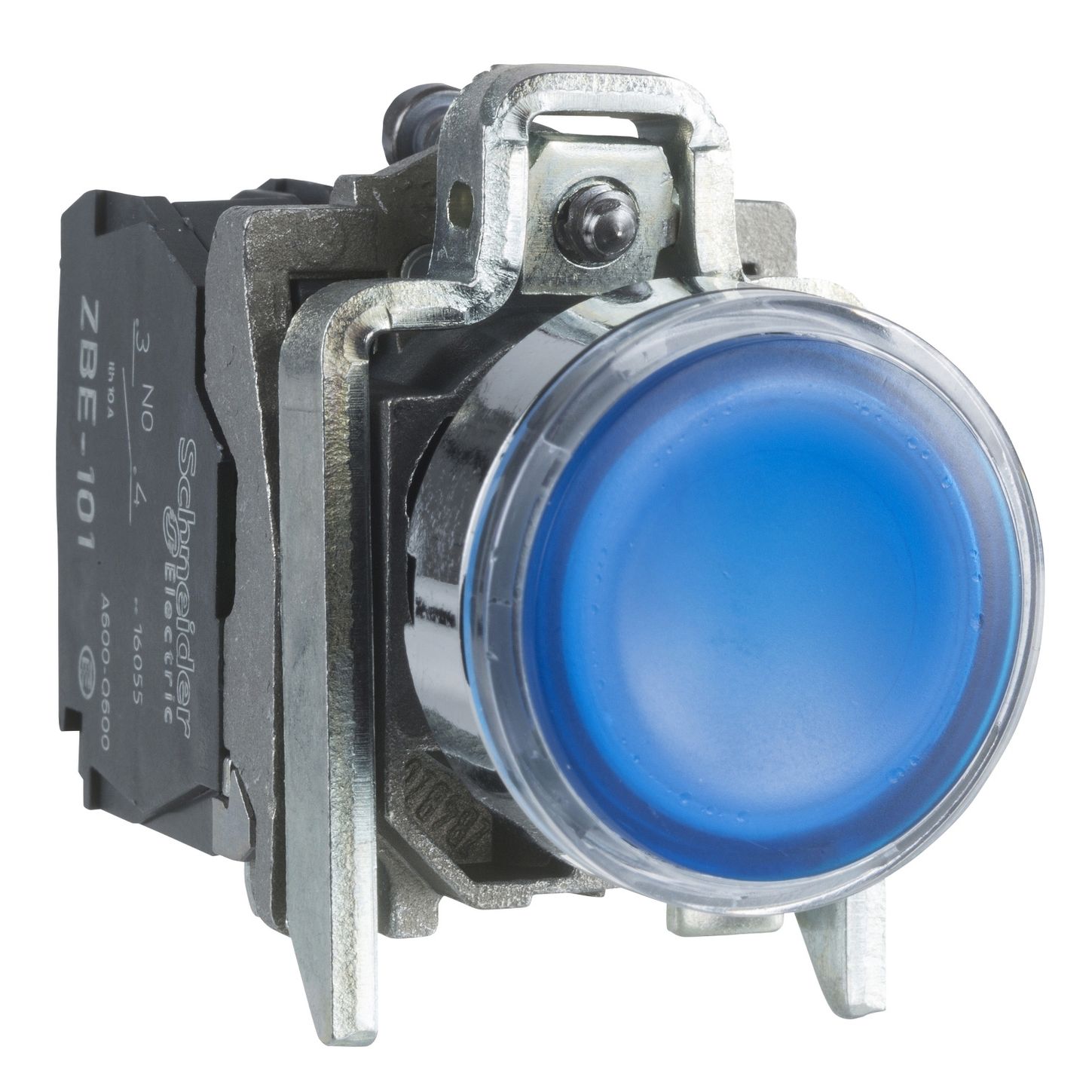

Square D XB4BW36G5

Name: Square D XB4BW36G5
Brand: Square D
SKU: CS1676895
Price: 119.78 USD
Availability: OutOfStock

SKU: CS1676895MPN: XB4BW36G5

Illuminated push button, Harmony XB4, metal, blue flush, 22mm, universal LED, plain lens, 1NO + 1NC, 110...120V AC

$119.78

Unit

Available on backorder

Quantity

remove

add

Product Details

Illuminated push button, metal, flush, blue, Dia 22, spring return, 110...120 V AC, 1 NO + 1 NC

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Bulb Base	integral LED
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	1 NO + 1 NC
Contacts Usage	standard contacts
Current Consumption	14 mA
Device Presentation	complete product
Device Short Name	XB4
Fixing Collar Material	zamak
Head Type	standard
Light Source	protected LED
Mechanical Durability	10000000 cycles
Mounting Diameter	22 mm
Operator Additional Information	with plain lens
Product Certifications	LROS (Lloyds register of shipping)# #BV# #UL listed# #CSA# #DNV# #GL
Product Or Component Type	illuminated push-button
Protective Treatment	TH
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Signalling Type	steady
Signalling Type 1	steady
Standards	JIS C8201-5-1# #EN/IEC 60947-1# #EN/IEC 60947-5-4# #EN/IEC 60947-5-5# #CSA C22.2 No 14# #UL 508# #EN/IEC 60947-5-1# #JIS C8201-1
Terminals Description Iso N 1	(21-22)NC# #(13-14)NO
