Square D XB4BW34B5

Name: Square D XB4BW34B5
Brand: Square D
SKU: CS1676912
Price: 119.78 USD
Availability: OutOfStock

SKU: CS1676912MPN: XB4BW34B5

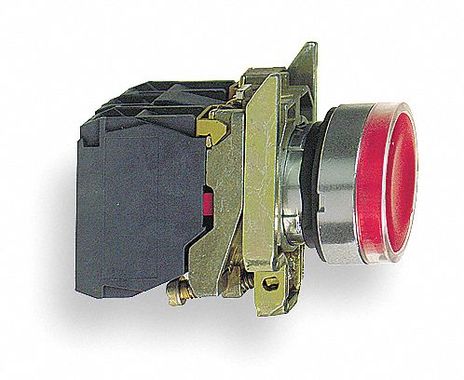

Illuminated push button, Harmony XB4, metal, red flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC

$119.78

Unit

Available on backorder

Quantity

remove

add

Product Details

Pushbutton, LED, Red Flush Complete illum 22mm spring return 1NO+1NC 24V

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Bulb Base	integral LED
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	1 NO + 1 NC
Contacts Usage	standard contacts
Current Consumption	18 mA
Device Presentation	complete product
Device Short Name	XB4
Fixing Collar Material	zamak
Head Type	standard
Light Source	protected LED
Mechanical Durability	10000000 cycles
Mounting Diameter	22 mm
Operator Additional Information	with plain lens
Product Certifications	BV# #UL listed# #DNV# #CSA# #LROS (Lloyds register of shipping)# #GL
Product Or Component Type	illuminated push-button
Protective Treatment	TH
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Signalling Type	steady
Signalling Type 1	steady
Standards	EN/IEC 60947-5-5# #UL 508# #EN/IEC 60947-5-1# #CSA C22.2 No 14# #EN/IEC 60947-1# #EN/IEC 60947-5-4# #JIS C8201-5-1# #JIS C8201-1
Terminals Description Iso N 1	(13-14)NO# #(21-22)NC
