Schneider Electric XB4BA42

Name: Schneider Electric XB4BA42
Brand: Schneider Electric
SKU: CS1162369
Price: 38.58 USD
Availability: InStock

SKU: CS1162369MPN: XB4BA42Alternate Part #: SQD-XB4BA42

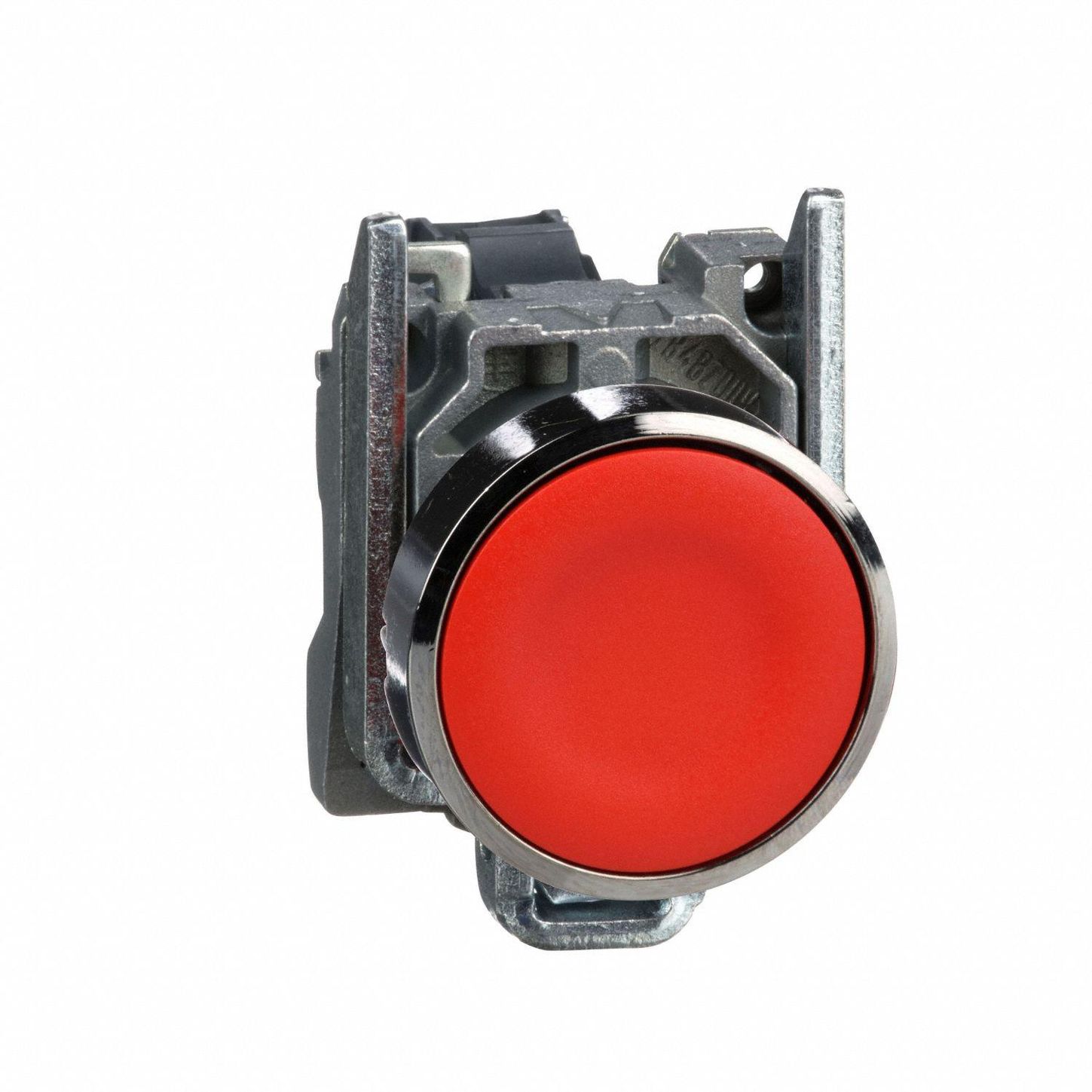

Push button, Harmony XB4, metal, flush, red, 22mm, spring return, unmarked, 1NC

$38.58

Unit

12 in stock

Quantity

remove

add

Product Details

Harmony Red Flush Complete Pushbutton

Mounting Diameter: 22mm* Type of Operator: Spring Return* Contacts Type and Composition: 1 NC* Rated Insulation Voltage: 600V conforming to EN/IEC 60947-1

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	1 NC
Contacts Usage	standard contacts
Device Presentation	complete product
Device Short Name	XB4
Fixing Collar Material	zamak
Head Type	standard
Mechanical Durability	10000000 cycles
Mounting Diameter	22 mm
Product Certifications	LROS (Lloyds register of shipping)# #GL# #BV# #CSA# #DNV# #UL listed
Product Or Component Type	push-button
Protective Treatment	TH
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Standards	EN/IEC 60947-5-5# #UL 508# #CSA C22.2 No 14# #EN/IEC 60947-5-4# #EN/IEC 60947-1# #JIS C8201-5-1# #EN/IEC 60947-5-1# #JIS C8201-1
Terminals Description Iso N 1	(21-22)NC
