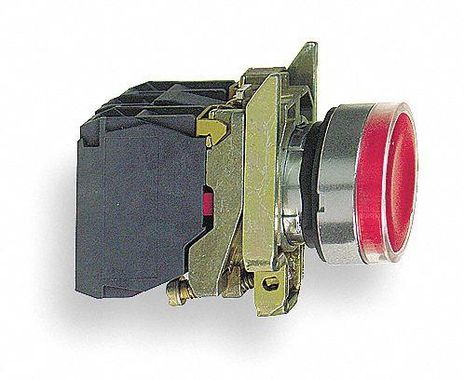

Square D XB4BW34G5

Name: Square D XB4BW34G5
Brand: Square D
SKU: CS1676896
Availability: OutOfStock

SKU: CS1676896MPN: XB4BW34G5

Illuminated push button, Harmony XB4, metal, red flush, 22mm, universal LED, plain lens, 1NO + 1NC, 110...120V AC

Product Details

Red Flush Complete Illum Pushbutton 22mm Spring Return 1NO+1NC 110...120V

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Bulb Base	integral LED
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	1 NO + 1 NC
Contacts Usage	standard contacts
Current Consumption	14 mA
Device Presentation	complete product
Device Short Name	XB4
Fixing Collar Material	zamak
Head Type	standard
Light Source	protected LED
Mechanical Durability	10000000 cycles
Mounting Diameter	22 mm
Operator Additional Information	with plain lens
Product Certifications	LROS (Lloyds register of shipping)# #UL listed# #CSA# #BV# #GL# #DNV
Product Or Component Type	illuminated push-button
Protective Treatment	TH
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Signalling Type	steady
Signalling Type 1	steady
Standards	JIS C8201-5-1# #EN/IEC 60947-5-5# #EN/IEC 60947-5-4# #EN/IEC 60947-5-1# #CSA C22.2 No 14# #UL 508# #EN/IEC 60947-1# #JIS C8201-1
Terminals Description Iso N 1	(21-22)NC# #(13-14)NO
