Dwyer AVFS-2
SKU: CS5729724MPN: AVFS-2Alternate Part #: 124762-01
AVFS-2 AIR FLOW SWITCH
$461.13
UnitAvailable on backorder
Product Details
AVFS-2 AIR FLOW SWITCH
Attributes
| Air Velocity Range | 197-1969 FPM (1-10 m/s). |
| Commodity Code | R1DB |
| Compliance | CE. |
| Display | 1 Red LED/1 Green LED. |
| Electrical Connection | 6.5’ (2 m) cable. |
| Electrical Rating | 3 A @ 30 VDC/250 VAC. |
| Enclosure Rating | IP65. |
| Housing | PBT. |
| Humidity Limit | 0-90% RH. |
| Humidity Limits | 0-90% RH. |
| Power Consumption | 3 VA. |
| Power Requirement | AVFS-1: 80 to 250 AC/DC (47 to 63 Hz AC). AVFS-2: 24 VDC ±25%. |
| Pressure Limit | 14.7 psig (1 bar). |
| Repeatability | ±5% FS. |
| Response Time | 3-60 seconds. Varies with flow and set point. |
| Switch Type | N.O. SPST. |
| Wetted Material | PBT body, titanium sensor. |
Specifications
| SKU | CS5729724 |
|---|---|
| MPN | AVFS-2 |
| Alternate Part # | 124762-01 |
You may also like
Dwyer AVFS-1
$461.13Unit
Dwyer AAFS
$100.79Unit

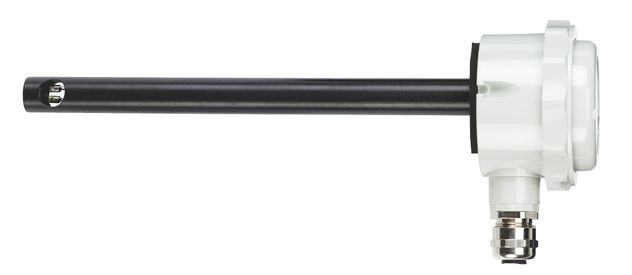

Dwyer AVUB-2-V
Discontinued - Contact Us For Pricing & Availability
Dwyer AVU-2-A
Contact us for pricing and availability

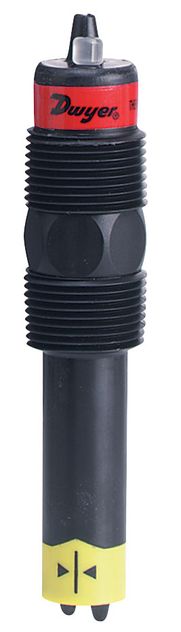

Dwyer TDS122
$652.62Unit
Dwyer CAM-10
Contact us for pricing and availability

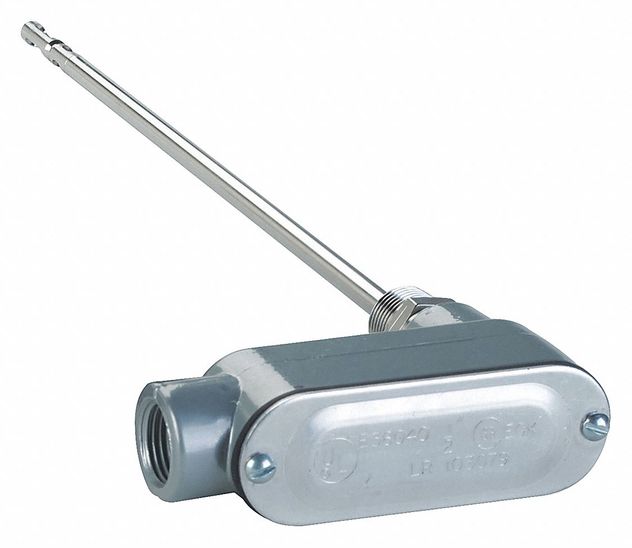

Dwyer 641-6
