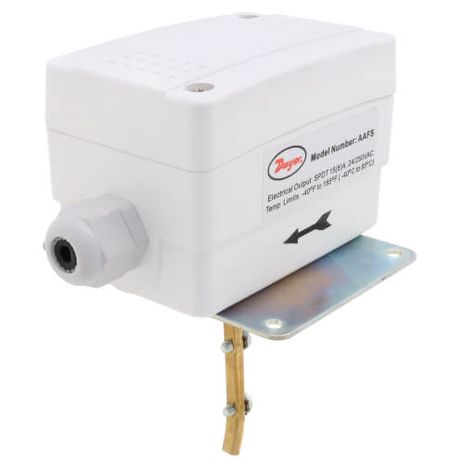

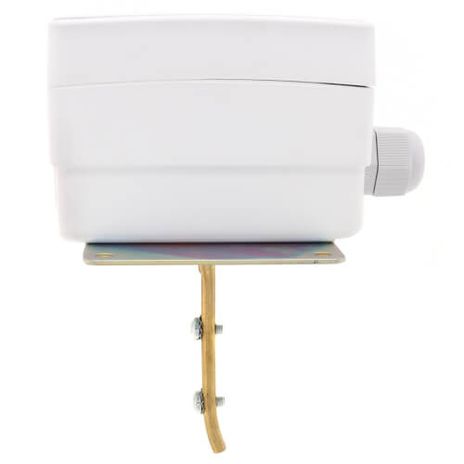

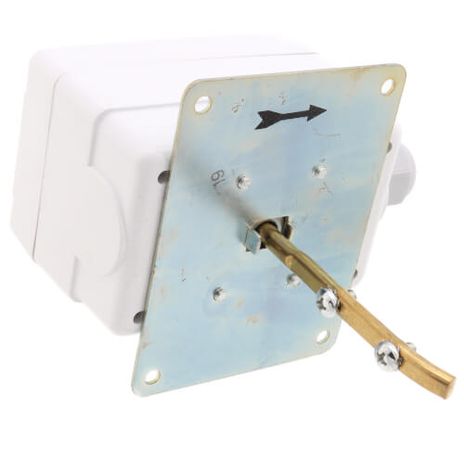

Dwyer AAFS
SKU: CS3336023MPN: AAFSAlternate Part #: 124912-00
AAFS ADJ AIR FLOW PADDLE SWTCH





$100.79
Unit5+ Units Available at Factory - Ships Same/Next Business Day
Product Details
Adjustable air flow paddle switch
Attributes
| Commodity Code | R8EA |
| Electrical Connection | Screw terminal with M18 x 1.5 cable gland. |
| Electrical Rating | 15(8) A @ 250 VAC. |
| Enclosure Rating | IP65. |
| Housing | ABS. |
| Humidity Limit | 10 to 90%, noncondensing. |
| Humidity Limits | 10 to 90%, noncondensing. |
| Mounting Orientation | Horizontal duct flow. |
| Process Connection | Flange. |
| Service | Air and compatible gas. |
| Set Point | Internal screw. |
| Switch Type | SPDT. |
| Wetted Material | Vane: SS; Lever: Brass; Base: Galvanized steel. |
Specifications
| SKU | CS3336023 |
|---|---|
| MPN | AAFS |
| Alternate Part # | 124912-00 |
