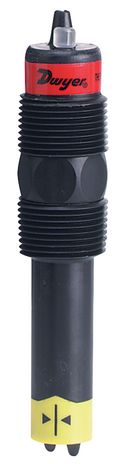

Dwyer TDS122

SKU: CS2078584MPN: TDS122Alternate Part #: 124054-09

TDS122 FLOW SWITCH MODEL

Dwyer TDS122
$652.62
Unit
Available on backorder
remove
add

Product Details

Thermal dispersion flow switch, PP/PPS wetted parts, 4.5” (11.4 cm) length.

Attributes

Agency Approval CE.
Agency Approvals CE.
Commodity Code R5GF
Consumption 50 mA (nominal).
Electrical Connection 22 AWG 3-wire, 10 ft (3 m) length.
Electrical Connections 22 AWG 3-wire, 10 ft (3 m) length.
Electrical Rating 60 VAC/60 VDC @ 1 A.
Indication LED for flow status.
Mounting Orientation Any orientation, for pipe sizes ¾” to 1-½” use 3.0” (7.6 cm) length switch; for 2” to 16” pipe sizes use 4.5” (11.4 cm) length switch.
Pressure Limit 150 psi (10 bar) @ 77°F (25°C), derated @ 1.667 psi (.113 bar) per °C above 25°C.
Process Connection ¾” male NPT.
Process Connections ¾” male NPT.
Range Range: 0.04 to 10 fps (1.2X10-2 to 3.05 m/s)
Repeatability ±5% of setpoint.
Response Time 1-10 seconds.
Service Liquids.
Setpoint Adjustment 0.04 to 3 fps (1.2X10-2 to .91 m/s).
Setpoint Drift 0.5% of setpoint.
Supply Voltage 12 to 36 VDC.
Switch Type SPDT.
Viscosity Range 1 to 200 centipoise.
Wetted Material Polypropylene/PPS or Polyvinylidene Fluoride.

Specifications

SKUCS2078584
MPNTDS122
Alternate Part #124054-09
