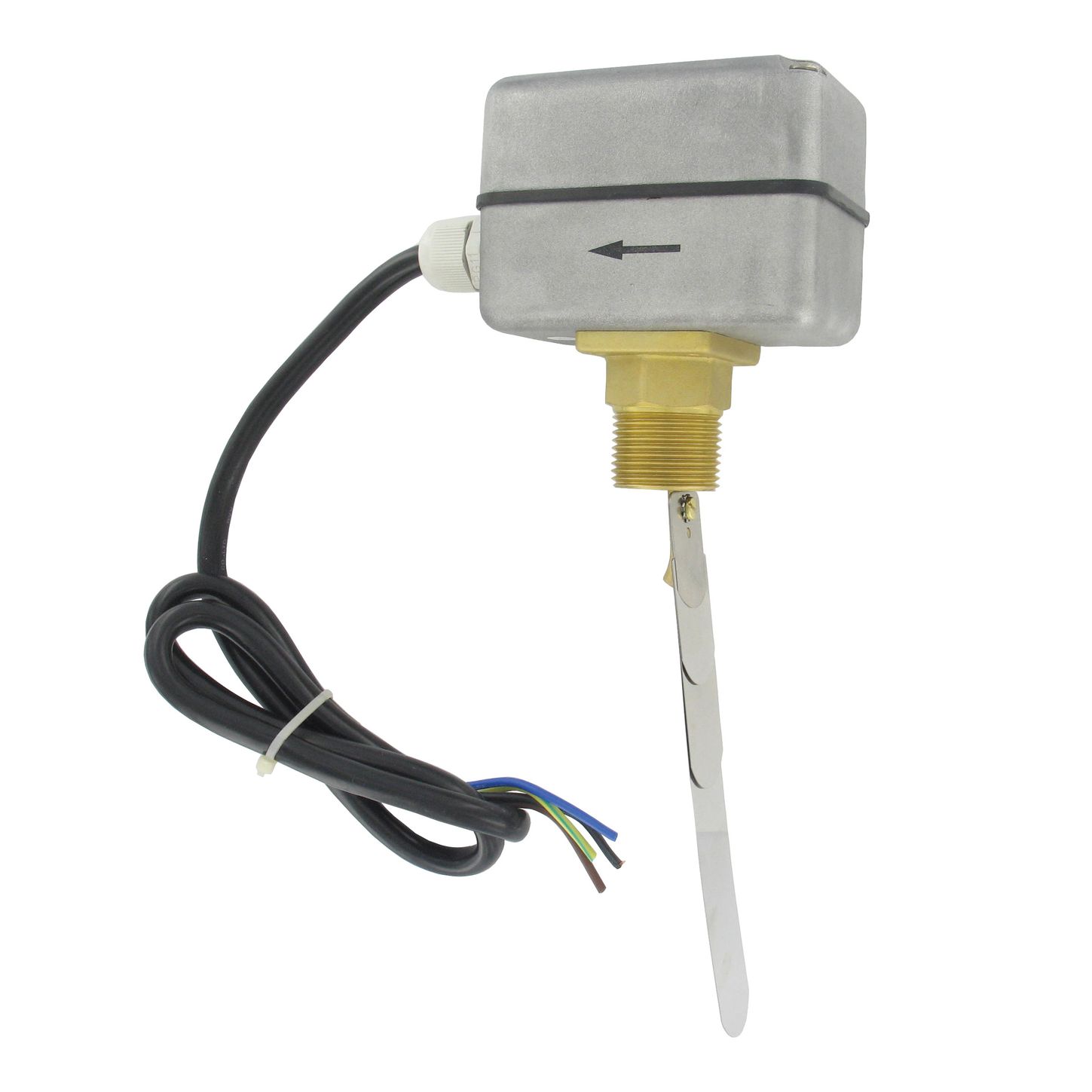

Dwyer FS-2
SKU: CS3107523MPN: FS-2Alternate Part #: 124398-00
FS-2 PADDLE FLOW SW NPT CONN
$97.15
UnitAvailable on backorder
Product Details
Paddle flow switch, 1” male NPT.
Attributes
| Commodity Code | R5AA |
| Compliance | CE. |
| Electrical Connection | Cable gland with attached wire leads or optional conduit connection. |
| Electrical Rating | 10 A res, 3 A ind @ 250 VAC. |
| Enclosure | Die-cast aluminum alloy. |
| Enclosure Rating | NEMA 4 (IP64). |
| Mounting Orientation | Switch must be installed vertically on horizontal pipe runs. |
| Pressure Limit | 145 psig (10 bar). |
| Process Connection | 1” male NPT or BSPT. |
| Service | Compatible liquids. |
| Set Point Adjustment | Four vane combinations and an adjustment screw. |
| Switch Type | SPDT snap switch. |
| Wetted Material | Bellow: Tin-bronze; Vane: SS; Body: Forged brass. |
Specifications
| SKU | CS3107523 |
|---|---|
| MPN | FS-2 |
| Alternate Part # | 124398-00 |
You may also like
Dwyer FS-2-BSPT
$97.15UnitDwyer FS-2-W8
$97.15UnitDwyer FS-2-CND
$97.15Unit
Dwyer V4-2-D-U
$838.85Unit
Dwyer V4-SS-2-U
$1,066.14UnitDwyer FS-2-VANE
$21.91Unit
Dwyer V6EPB-B-S-3-B
$400.57UnitDwyer V4-2-U
$762.77Unit

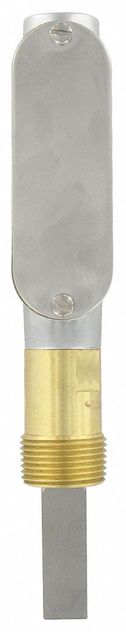

Dwyer V7-WBS-30N
$144.03Unit

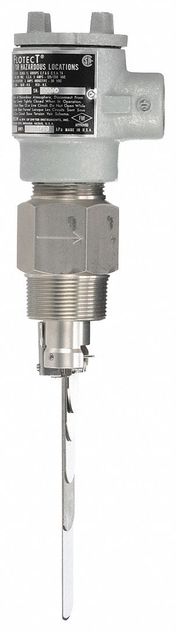

Dwyer V4-SS-2-D-U
$1,142.24Unit
Dwyer V10
$106.57Unit

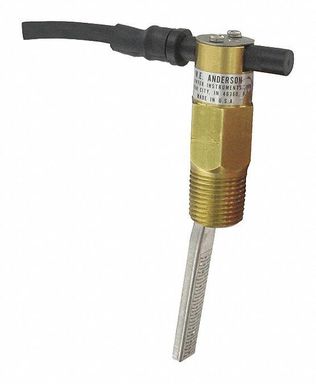

Dwyer V10SS
