Dwyer CAM-10

Name: Dwyer CAM-10
Brand: Dwyer
SKU: CS4116469
Availability: OutOfStock

SKU: CS4116469MPN: CAM-10Alternate Part #: 124492-00

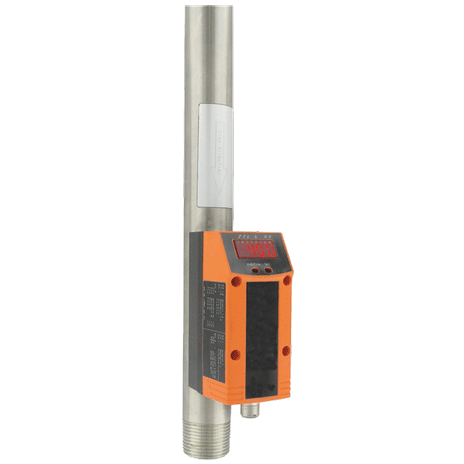

CAM-10 COMP AIR METER 2 NPT

Product Details

Compressed air meter, 2” NPT, range 1.4-412.0 SCFM.

Accuracy	Class 141: ±3% of measured value + 0.3% of full scale value; Class 344: ±6% of measured value + 0.6% of full scale value.
Agency Approval	CE.
Agency Approvals	CE.
Commodity Code	R1DA
Current Consumption	<100 mA.
Display	4-digit alpha numeric red LED.
Electrical Connection	4-pin M12 (micro) cable connection.
Electrical Connections	4-pin M12 (micro) cable connection.
Enclosure Rating	IP 65 (NEMA 4X).
Humidity Limit	90% RH.
Loop Resistance	500 ohms.
Mounting Orientation	Vertical, horizontal, side with pipe length facing left.
Output Signal	Output 1: PNP Open Collector: VOUT(max)=30 VDC/ISINK(max)= 250 mA; Output 2: 4-20 mA (scaleable) or PNP Open Collector.
Power Requirement	19-30 DC.
Pressure Limit	232 psig (16 bar).
Process Connection	½”, 1” and 2” NPT.
Process Connections	½”, 1” and 2” NPT.
Response Time	<0.1 seconds.
Service	Compressed air; air quality (see chart on Catalog Page).
Temperature Limit	32 to 140°F (0 to 60°C).
Wetted Material	Stainless steel (304S15), ceramics, glass passivated, PEEK, polyester, fluoroelastomer, anodized aluminum.
