Dwyer AVFS-1
SKU: CS2067704MPN: AVFS-1Alternate Part #: 124762-00

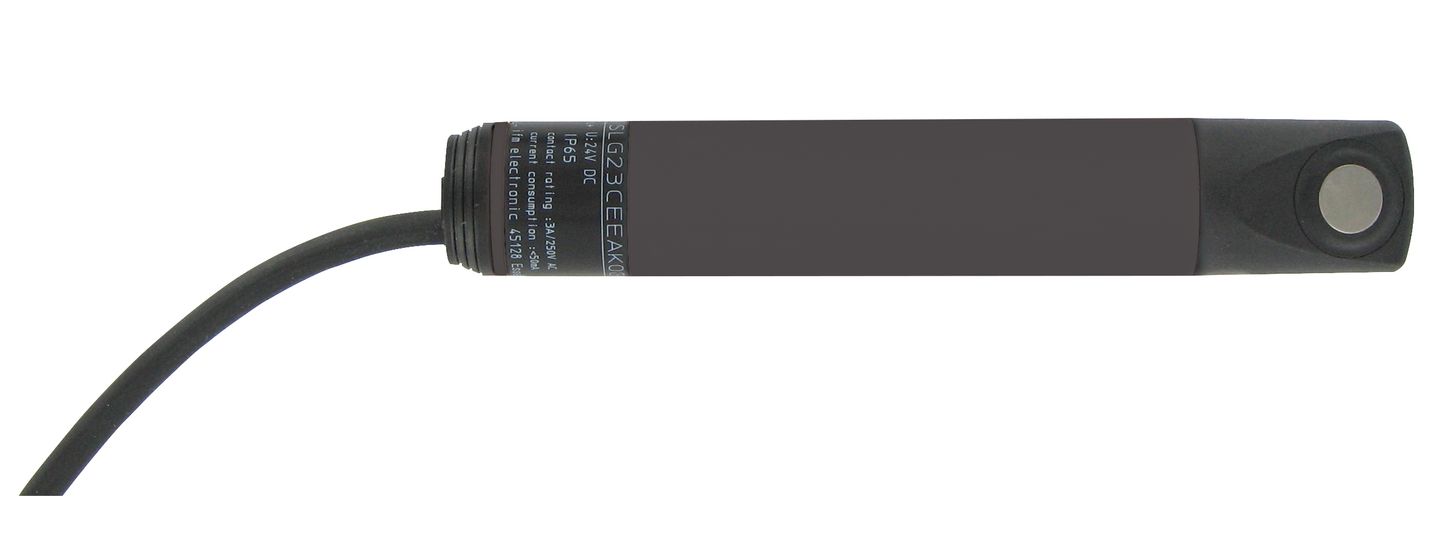

AVFS-1 AIR FLOW SWITCH
$461.13
UnitAvailable on backorder
Product Details
Thermo air flow switch, 80-250 AC/DC.
Attributes
| Air Velocity Range | 197-1969 FPM (1-10 m/s). |
| Commodity Code | R1DB |
| Compliance | CE. |
| Display | 1 Red LED/1 Green LED. |
| Electrical Connection | 6.5’ (2 m) cable. |
| Electrical Rating | 3 A @ 30 VDC/250 VAC. |
| Enclosure Rating | IP65. |
| Housing | PBT. |
| Humidity Limit | 0-90% RH. |
| Humidity Limits | 0-90% RH. |
| Power Consumption | 3 VA. |
| Power Requirement | AVFS-1: 80 to 250 AC/DC (47 to 63 Hz AC). AVFS-2: 24 VDC ±25%. |
| Pressure Limit | 14.7 psig (1 bar). |
| Repeatability | ±5% FS. |
| Response Time | 3-60 seconds. Varies with flow and set point. |
| Switch Type | N.O. SPST. |
| Wetted Material | PBT body, titanium sensor. |
Specifications
| SKU | CS2067704 |
|---|---|
| MPN | AVFS-1 |
| Alternate Part # | 124762-00 |
You may also like
Dwyer AVFS-2
$461.13Unit
Dwyer DAFA-1
$64.86Unit
Dwyer 473B-1
$808.66Unit

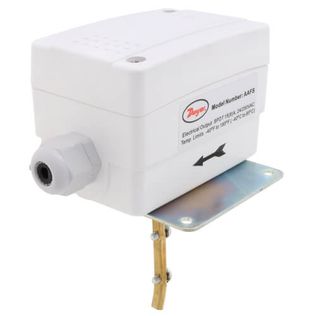

Dwyer AAFS
$100.79Unit

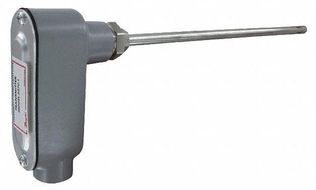

Dwyer 657C-1
Contact us for pricing and availability

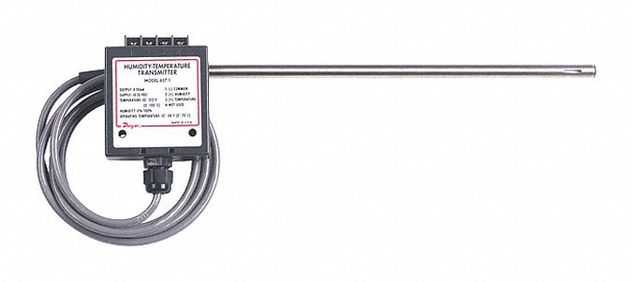

Dwyer 657-1
Contact us for pricing and availability

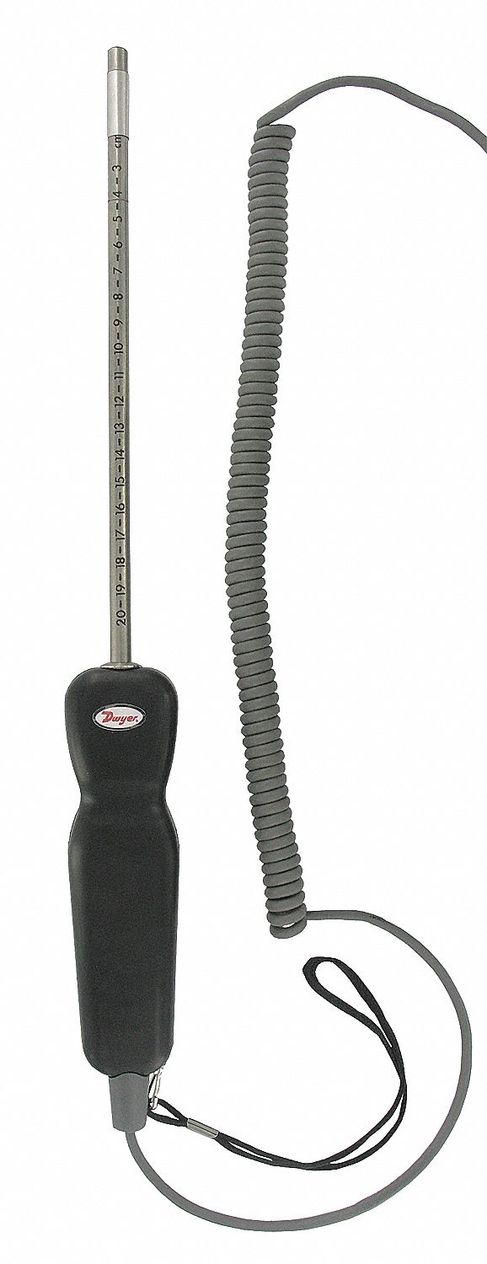

Dwyer AP1
$291.97UnitDwyer 530
$149.71UnitDwyer IPV-1
$526.45Unit
Dwyer BFM-1
$2,771.33Unit
Dwyer AFG-1
$795.58Unit

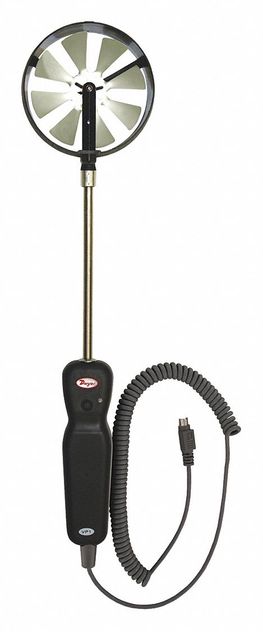

Dwyer VP1
