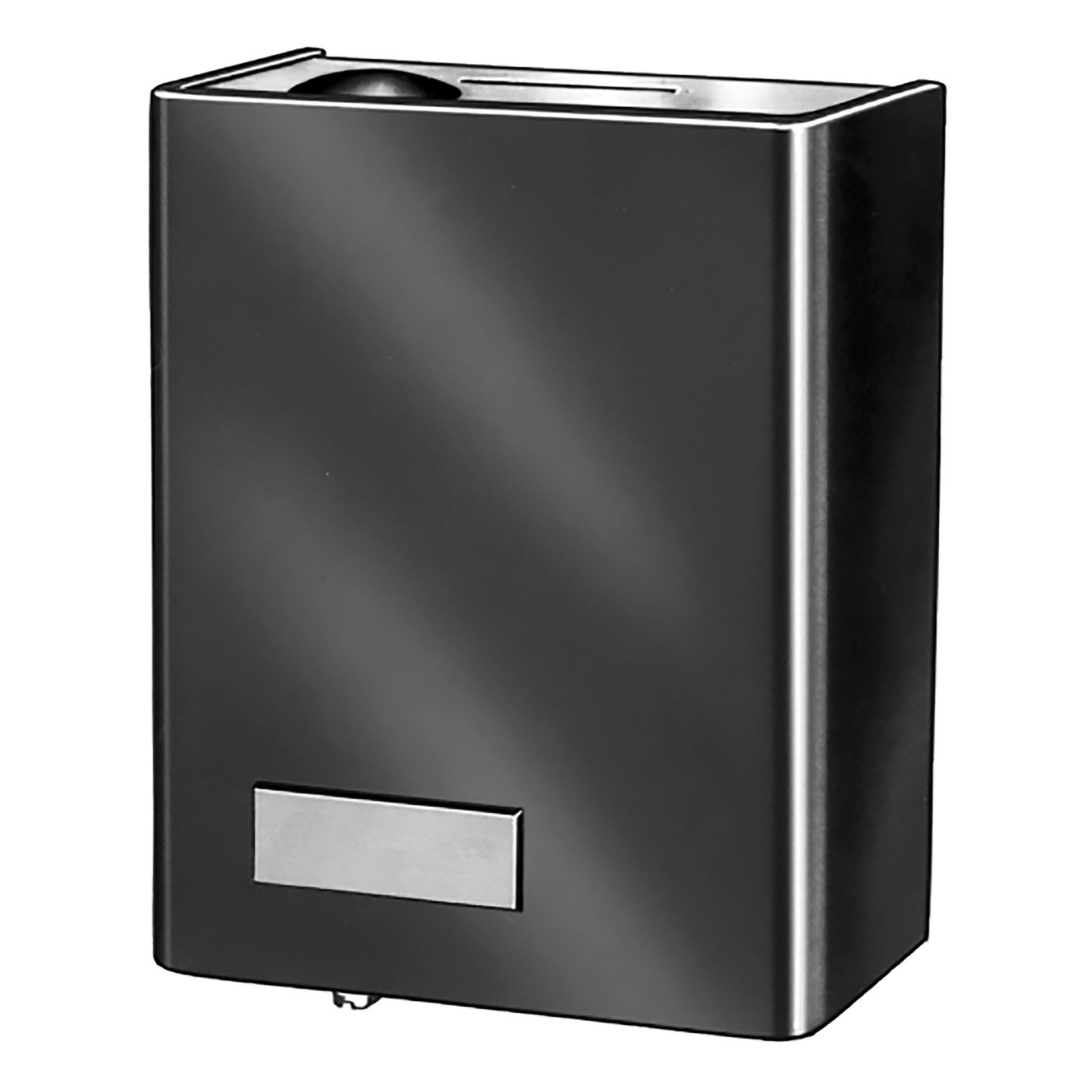

Resideo R847A1085

Heavy duty switching relay with integral transform and DPST or SPST voltage relays

Designed for control of relatively heavy duty 120 or 240 Vac electrical loads such as cooling compressors.

Features

• Internal, flexible leads permit SPST or DPST switching.

Specifications

• Description: 120V, 50/60 Hz Heavy Duty Switching Relay with integral transform, Dpst or Spst line voltage relays
• Application: Enclosed switching relay with internal transformer that provides 24V power for control circuit. It provides switching for high current load applications.
• Electrical Connections: 2-Wire
• Switching Action: DPST or SPST
• Coil Ratings Current: .4A
• Coil Ratings (sealed): 8.4 Va Coil Ratings Voltage: 24 Vac
• Coil Ratings (inrush): 21.4 Va
• Dimensions: 5 ¼ in. high x 4 ¼ in. wide x 2 ¾ in. deep
• Coil Rating (Maximum Pull-in Voltage): 20
• Electrical Ratings (Primary Voltage): 120V, 50/60 Hz
• Contacts Electrical Ratings (120 Vac AFL): 22A
• Contacts Electrical Ratings (120 Vac ALR): 100A
• Contacts Electrical Ratings (240 Vac AFL): 10A
• Contacts Electrical Ratings (240 Vac ALR): 50A
