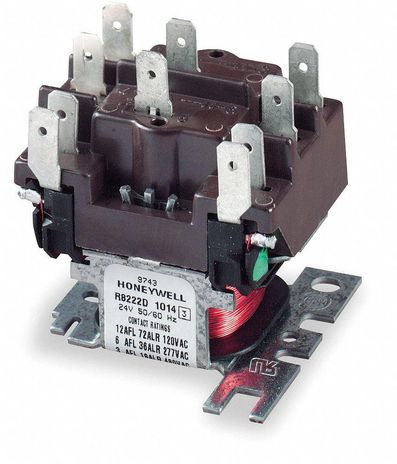

Resideo R8222D1014

12 VA General Purpose Relay with DPDT Switching

Provide general purpose switching for refrigeration and air conditioning equipment, appliances, vending machines and similar applications.

Specifications

• Plug compatible with Steveco 90-340 and Mars 90340.
• Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation.
• Untaped coil assures cooler operation.
• Laminated magnet construction for higher efficiency.
• Base designed for easy replacement of competitive relays.
• Double quick-connect coil terminals.

Features

• Description: 24 V General Purpose Relay with DPDT switching
• Coil Ratings Voltage: 24v
• Switching: DPDT
• Electrical Connections: 18 in. 457 mm
• Electrical Ratings Contacts (Full Load): 3 A @ 480 Vac; 6 A @ 208 Vac, 240 Vac, 277 Vac; 12 A @ 120 Vac
• Electrical Ratings Contacts (Locked Rotor): 18 A @ 480 Vac; 35 A @ 208 Vac, 240 Vac, 277 Vac, 60 A @ 120 Vac
• Electrical Ratings Contacts (Resistive): 10 A @ 480 Vac; 20.8 A @ 120 Vac, 208 Vac, 240 Vac, 277 Vac
• Pilot Duty Ratings: Minimum: 3 VA @ 24 Vac, 120 Vac, \& 480 Vac; Maximum: 25 VA @ 24 Vac, 125 VA @ 120 Vac, 240 Vac, \& 480 Vac; Resistive: 3 A @ 277 Vac (0.75 power factor); Powerpile: (Normally Open Contacts Only) 0.25 A @ 0.25 to 12 Vdc
• Frequency: 50 Hz, 60 Hz
• Dimensions: 1 ⅞ in. high x 2 5/32 in. wide x 2 ⅜ in. deep
• Temperature Ratings: -20 F to +155 F
