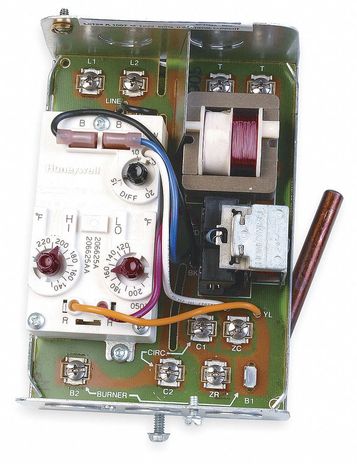

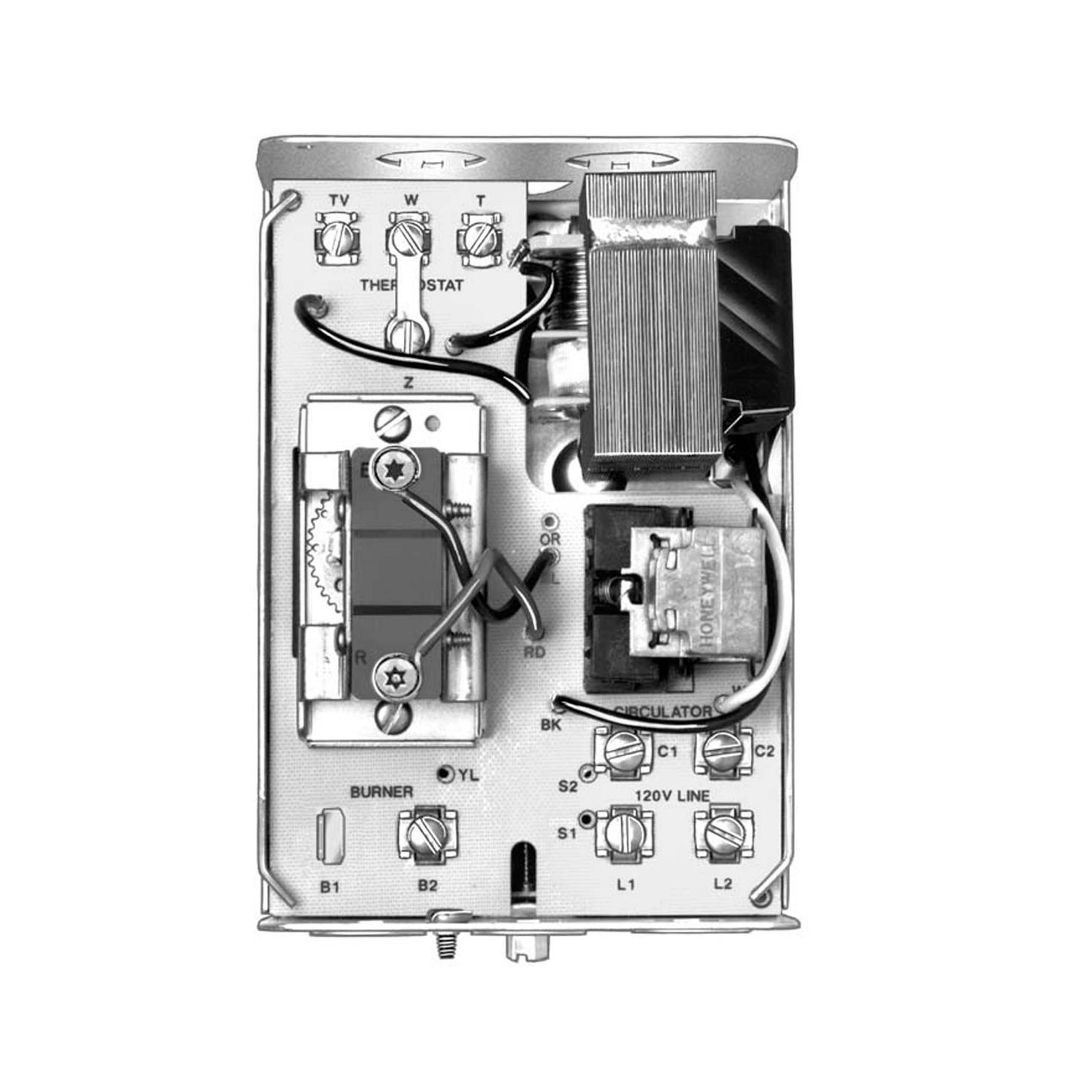

Resideo L8124G1020

Triple Aquastat Relay with SPST switching action, vertical mount

Features

• Immersion-type controllers that combine high limit protection with low limit and circulator control in forced hydronic heating systems.
• Provide multizone control by using a separate circulator and R845 Relay for each zone.
• Include diaphragm powerhead and Micro Switch+ assembly that respond to temperature changes in boiler water.
• Mount directly to boiler.
• Select models include large transformers and extra terminals for supplying power to low voltage zone valves.
• Require 24 Vac thermostat with heat anticipator set at 0.2 A (plus current draw of gas valve on L8124E).

Product Specifications

• Description: Triple Aquastat Relay with High limit : 10 F fixed; low limit: 10-25 F adj. Differential
• Application: Triple Aquastat Relay with High limit
• Operating Range, Low Limit (F): 110 F to 220 F
• Operating Range, Low Limit (C): 43 C to 104 C
• Operating Range, High Limit (F): 130 F to 240 F
• Operating Range, High Limit (C): 54 C to 116 C
• Differential Temperature (F): High limit : 10 F fixed; low limit: 10-25 F adj.
• Switching Action: SPST: High \& Low Limit
• Maximum Safe Operating Pressure (psi): 200 psi on outside of immersion well, 100 psi on capsule if inserted directly.
• Maximum Safe Operating Pressure (kPa): 1378 kPa on outside of immersion well, 690 kPa on capsule if inserted directly.
• Electrical Ratings (burner AFL): Line Voltage: 7.4 A @ 120 Vac; 3.7 A @ 240 Vac
• Electrical Ratings (burner ALR): Line Voltage: 44.4 A @ 120 Vac; 22.7 A @ 240 Vac
• Electrical Ratings (circulator AFL): 3.7 A @ 240 Vac
• Electrical Ratings (circulator AFL): 7.4 A @ 120 Vac
• Electrical Ratings (circulator ALR): 22.2 A @ 240 Vac
• Electrical Ratings (circulator ALR): 22.7 A @ 240 Vac
• Voltage: 120 Vac
• Frequency : 60 Hz
• Dimensions (in.): 6 ⅛ in. high x 4 ⅜ in. wide x 3 1/16 in. deep
• Dimensions (mm): 156 mm high x 111 mm wide x 78 mm deep
• Mounting : Vertical Mount Operating Humidity Range (% RH): 0 to 95% RH, non-condensing
• Maximum Ambient Temperature (F): 150 F at switches, 265 F at sensing element.
• Maximum Ambient Temperature (C): 66 C at switches, 129 C at sensing element.
• Minimum Ambient Temperature (F): -30 F
• Minimum Ambient Temperature (C): -9 C
• Electrical Connections: Quick-Connect / Screw
