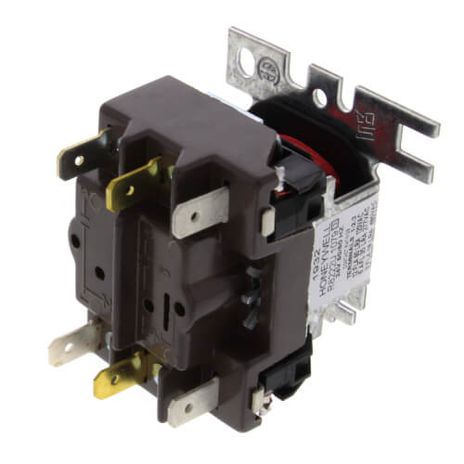

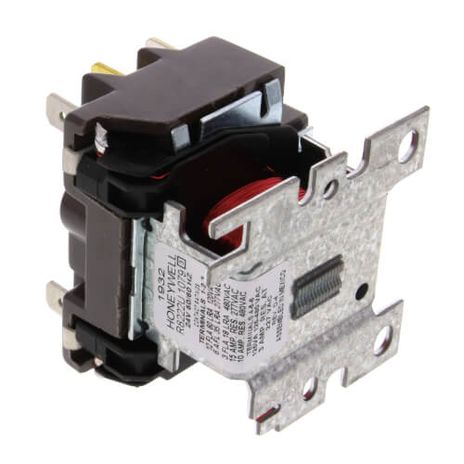

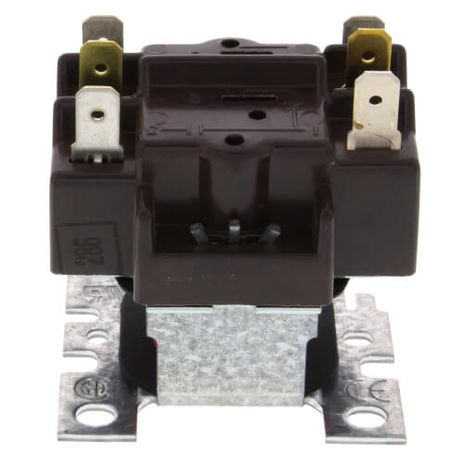

Resideo R8222U1006

24 V General Purpose Relay with DPST N.O. switching

Provide general purpose switching for refrigeration and air conditioning equipment, appliances, vending machines and similar applications.

Specifications

• Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation.
• Untaped coil assures cooler operation.
• Laminated magnet construction for higher efficiency.
• Base designed for easy replacement of competitive relays.
• Double quick-connect coil terminals.
• Plug compatible with Steveco 90-340 and Mars 90340.

Features

• Description: 24 V General Purpose Relay with Dpst N.O. switching
• Coil Ratings Voltage: 24v
• Switching: DPST N.O.(1 P\&1 Pduty)
• Electrical Connections: Single ¼ in. quick-connect on coil terminals
• Electrical Ratings Contacts (Full Load): 12 A @ 120 Vac
• Electrical Ratings Contacts (Full Load): 6 A @ 208 Vac, 240 Vac, 277 Vac
• Electrical Ratings Contacts (Full Load 3 A @ 480 Vac
• Electrical Ratings (locked rotor): 60 A @ 120 Vac
• Pilot Duty Ratings: Minimum: 3 VA @ 24 Vac, 120 Vac, \& 480 Vac; Maximum: 25 VA @ 24 Vac, 125 VA @ 120 Vac, 240 Vac, \& 480 Vac; Resistive: 3 A @ 277 Vac (0.75 power factor); Powerpile: (Normally Open Contacts Only) 0.25 A @ 0.25 to 12 Vdc
• Frequency: 50 Hz, 60 Hz
• Dimensions: 1-55/64 in. high x 2-7/64 in. wide x 2-⅜ in. deep
• Temperature Ratings: -20 F to +155 F
