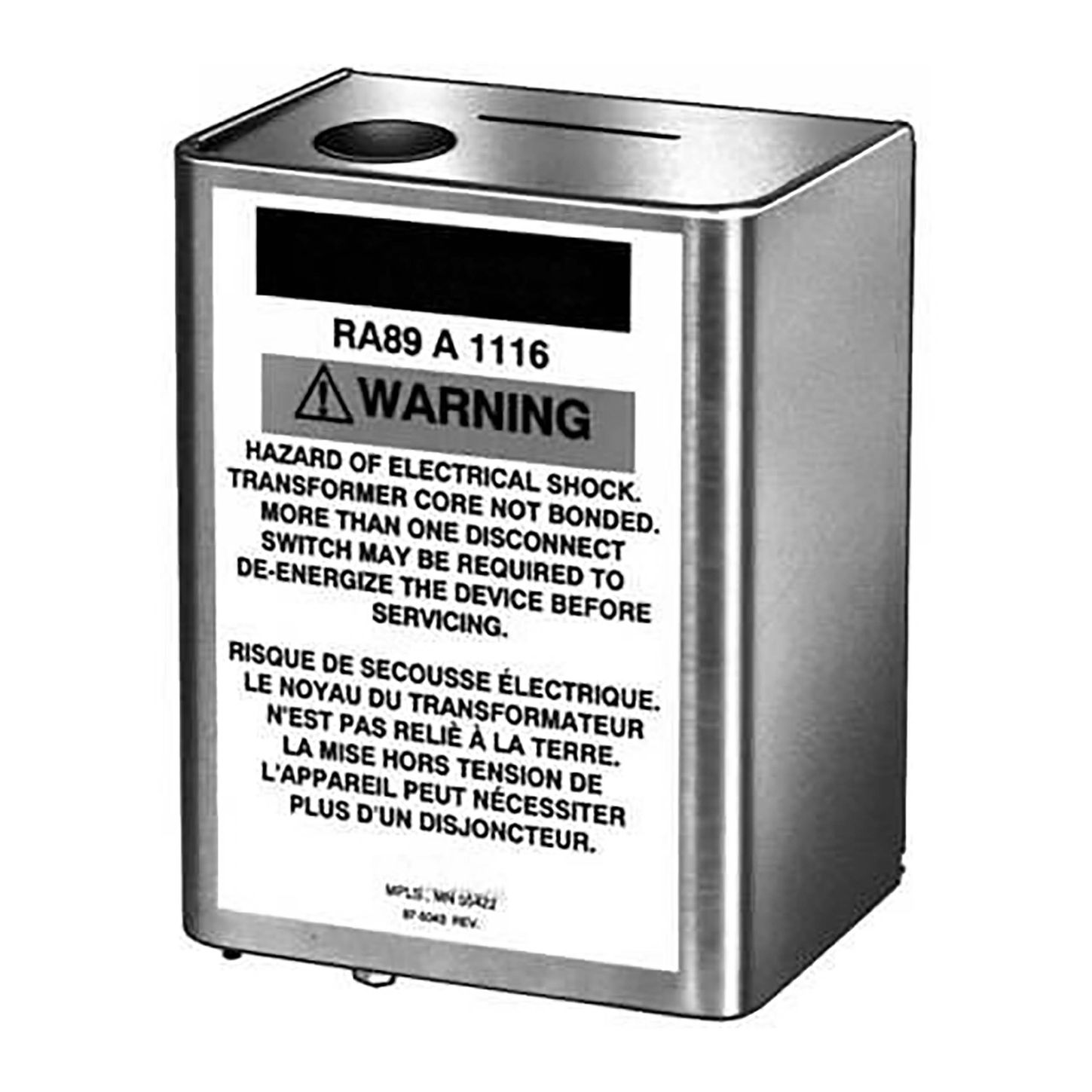

Resideo RA89A1116

Switching Relay W. Internal Transformer

Provide intermediate switching of a line voltage device from a low voltage controller.

Features

• High load switching capability.
• Troubleshooting LED.
• Push-to-test button.
• Replaceable transformer fuse.
• Long-life DC relay drive control technology.
• Relay for use with external 24 Vac or 24 Vdc supply, with line-voltage control, or with internal 24 V transformer supply.
• One model replaces many Honeywell models.
• Secondary of transformer protected by replaceable 1A automotive fuse

Product Specifications

• Description: Enclosed switching relay with internal transformer, Spdt line voltage relay, plus Spst low voltage relay with Powerpile rating. 120V/60Hz 15 AFL/30 ALR ratings one line voltage contacts
• Application: For switching of line- and low-voltage devices from a line- or low-voltage controller
• Electrical Connections (main): No. 8 captive wire clamp screw terminals.
• Switching Action: SPDT, plus PowerPile® rated low voltage SPST relay
• Thermostat Heat Anticipator Setting: 0.12A
• Transformer Primary Rating: 120 Vac, 60 Hz
• Transformer Secondary Rating: 24 Vac, 12 VA max., 9 VA available for external load. Secondary protected by replaceable 1A automotive fuse.
• Temperature Range (F): (Ambient) -20 F to +120 F
• Temperature Range (C): (Ambient) -29 C to +49 C
• Thermostat Compatibility: Honeywell electromechanical and electronic 2- or 3-wire
• Dimensions (in.): 6 ¼ in. high x 4 7/16 in. wide x 3 ½ in. deep
• Dimensions (mm): 159 mm high x 118 mm wide x 89 mm deep
• Operating Humidity Range (% RH): 0 to 90% RH, non-condensing
• Electrical Ratings (Primary Voltage): 120V, 60 Hz
• Replacement Parts: 32002190-001 Circulator Replacement Relay
• Contacts Electrical Rating Contacts Max. Connected Load: 2000 VA
• Contacts Electrical Ratings (120 Vac AFL): 15A
• Contacts Electrical Ratings (120 Vac ALR): 30A
• Approvals, Canadian Underwriters Laboratories: Listed: Guide No. XAPX7.
• Includes: Integral transformer, enclosure
• Approvals, Underwriters Laboratories Inc: Listed: File No. E4436, Guide No. XAPX
