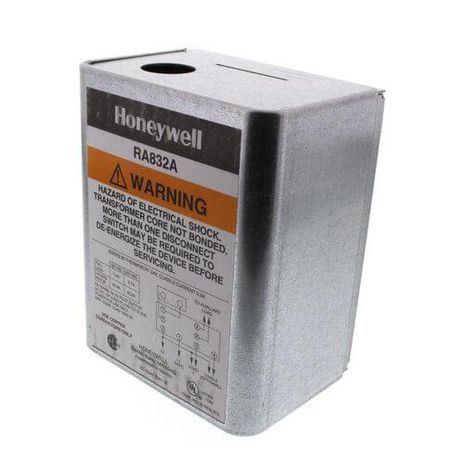

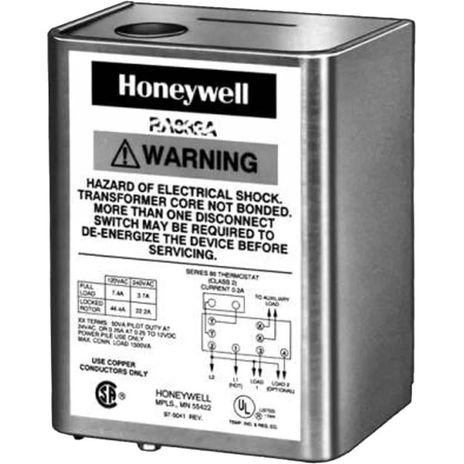

Resideo RA832A1074

TRADELINE. 240/50-60. DPST SWITCHING OF ONE LINE VOLT LOAD AND A LOW VO LT OR MILLIVOLT LOAD.

Provide intermediate switching of a line voltage device from a low voltage controller.

Specifications

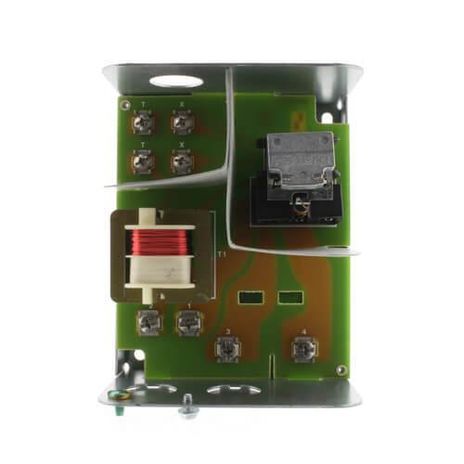

• Integral transformer provides low voltage power for control circuit.
• The RA832A is a DPST relay. One relay pole is designed for low voltage or millivoltage (Powerpile) auxiliary load. Two other relay poles are for line voltage loads.

Features

• Description: Switching Relay with internal transformer, for switching two line voltage loads having a common power source.
• Application: Provide intermediate switching of a line voltage device form a low voltage controller.
• Switching Action: DPST; one pole line voltage, the other low voltage or millivolt
• Coil Ratings Current: 0.4A
• Coil Ratings Voltage: 24 Vac
• Temperature Range: 115 F maximum ambient for 60 Hz. 105 F Max. Ambient for 50 Hz.

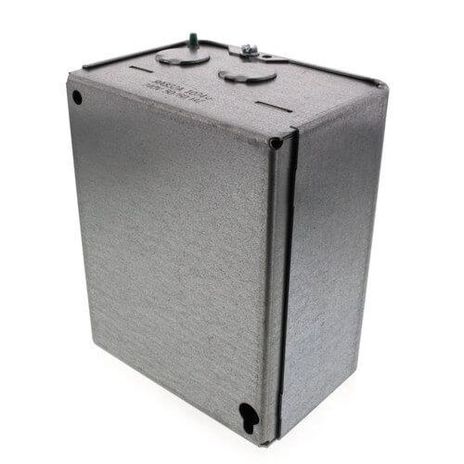

• Dimensions: 5 ¼ in. high x 4 ¼ in. wide x 2 5/16 in. deep
• Electrical Connections: 2-Wire
• Electrical Ratings (Maximum Input): 5.0 W
• Electrical Ratings (Primary Voltage): 240V, /5060 Hz
• Contacts Electrical Rating Main Contacts 120 Vac: 7.4A AFL; 44.4A ALR; 10A Resistive
• Contacts Electrical Rating Main Contacts 240 Vac: 3.7A ALF; 22.2A ALR; 6.0A Resistive
• Contacts Electrical Rating Secondary Contacts Pilot Duty Rating: 50 VA @ 24V
• Contacts Electrical Rating Secondary Contacts Dc Rating: 1A @ 12 Vdc
• Contacts Electrical Rating Secondary Contacts Millvolt Rating: 300 mA min. @ 750 mV
